Front Rear A/C Compressor Kit for 2003-2023 Chevrolet Express 2500 & More - Four Seasons 9126NK

$325.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 9126NK
    UPC: 096361075818
    Condition: New
    Weight: 18.80 LBS
    Item Package Quantity: 1
    $325.99
    Adding to cart… The item has been added

    Have questions?

    Four Seasons A/C Compressor Kit P/N:9126NK
    Four Seasons A/C Compressor Kit P/N:9126NK
    $325.99
    $325.99

    Four Seasons 9126NK A/C compressor kit for the 2003-2023 Chevrolet Express 2500 and other vehicles replaces the A/C compressor and the main parts changed with it. This air conditioning kit with a new compressor is built for vans with front and rear A/C.

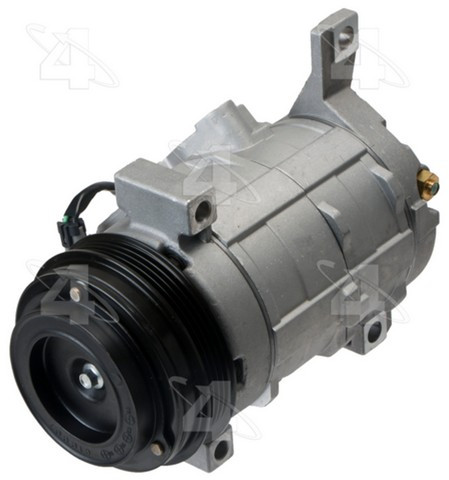

    • New compressor of the Denso 10S20F type with a 4-groove pulley 4.25 in (108 mm) across
    • Orifice tube for the front A/C system and expansion valve for the rear A/C system
    • Accumulator with P-nut fittings, 3.50 in across and 8.75 in long
    • Compressor kit for A/C systems that run on R134a refrigerant
    • Four Seasons kit parts engineered and tested for years of trouble-free operation

    Quick facts

    • Part: Four Seasons 9126NK A/C compressor kit
    • Fits: 2003-2023 Chevrolet Express 2500 and other vehicles
    • Condition: New

    Warm air from the vents or a grinding or rattling sound while the A/C runs can mean the compressor is failing. With the engine off, look over the compressor, lines and fittings for oily residue or damage first, because a leak or a wiring fault can also leave the A/C blowing warm; a shop can test the system pressures.

    Fits

    The 2003-2023 Chevrolet Express 3500 and the 2003-2023 GMC Savana 2500 are among the many Chevrolet and GMC vans this A/C compressor kit fits as a direct replacement. Driving a van not named here? Find your year and model in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Pulley outside diameter: 4.25 in (108 mm)
    • Pulley grooves: 4
    • Accumulator diameter: 3.50 in
    • Accumulator length: 8.75 in
    • Accumulator fittings: P-nut
    • Orifice tube orifice size: 0.072 in
    • Quantity per vehicle: 1

    Build and materials

    • Compressor: 78377, Denso 10S20F type
    • Refrigerant: R134a
    • Compressor oil: PAG 46
    • Condition: New
    • Country of origin: Mexico

    In the box

    One 78377 compressor, one 83238 accumulator, one 38623 orifice tube, one 39133 expansion valve, 59007 PAG 46 compressor oil and O-rings. This listing is one kit, and a van needs just one.

    Installation notes

    • The kit parts come packaged together to meet the Four Seasons compressor warranty requirements.
    • The OE manifold may be needed for this installation.

    Interchange: 520357 · 9611821 · CBK82500N · KT4051

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    9126NK, 520357, 9611821, CBK82500N, KT4051

    Frequently Asked Questions

    Does the Four Seasons 9126NK compressor kit fit a 2003-2023 Chevrolet Express 3500?

    Yes. The Four Seasons 9126NK A/C compressor kit fits the 2003-2023 Chevrolet Express 3500 and the 2003-2023 GMC Savana 2500; look for other vans in the "Vehicles it fits" section.

    Does this A/C compressor kit come with an accumulator and orifice tube?

    Yes. This A/C compressor kit includes the 83238 accumulator and the 38623 orifice tube, along with the 78377 compressor, the 39133 expansion valve, 59007 PAG 46 oil and O-rings.

    What size pulley is on the 9126NK compressor?

    The compressor in the Four Seasons 9126NK kit is a Denso 10S20F type with a 4-groove pulley 4.25 in (108 mm) across.

    Why does this compressor kit have both an orifice tube and an expansion valve?

    This A/C compressor kit serves vans with front and rear A/C: the orifice tube is for the front system and the expansion valve is for the rear system.

    Is a DeSlugger recommended with this A/C compressor kit?

    Yes, on vehicles with a low-mount compressor, DeSlugger 36141 is recommended. It is sold separately and is not part of this A/C compressor kit.
