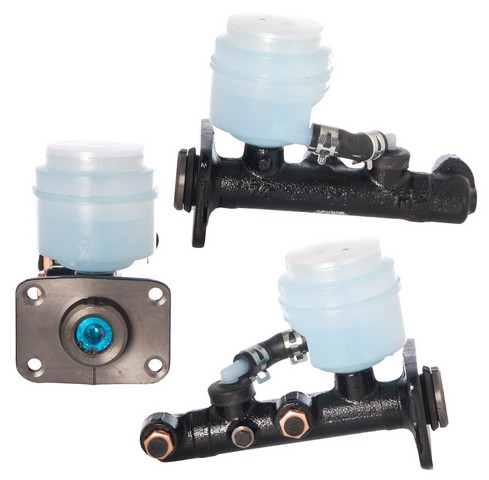

ADVICS BMT-022 brake master cylinder for the 1984-1987 Toyota Land Cruiser turns pedal force into hydraulic pressure for the brakes. This ADVICS brake master cylinder is new and is produced to OEM specifications with OEM quality components.
- Cast iron body with a 22.22 mm bore
- Anodized and Kanizen plated, with finishes and coatings that protect against corrosion
- Single plastic reservoir with the cap included
- Two ports with M10 - 1.0 primary and secondary outlet threads
Quick facts
- Part: ADVICS BMT-022 brake master cylinder
- Fits: 1984-1987 Toyota Land Cruiser
- Material: Cast iron
- Condition: New
A brake pedal that sinks or feels soft, a falling fluid level in the reservoir or fluid around the cylinder can mean the master cylinder is worn. Before you replace it, look at the reservoir level and the outside of the cylinder with the engine off, because leaking hoses, calipers or wheel cylinders can show similar signs.
Fits
This master cylinder fits the 1984-1987 Toyota Land Cruiser, and that Land Cruiser takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 22.22 mm
- Mounting holes: 4
- Ports: 2
- Primary outlet thread: M10 - 1.0
- Secondary outlet thread: M10 - 1.0
Build and materials
- Grade: Standard replacement
- Reservoir: Single, plastic
- Master cylinder material: Cast iron
- Finish: Anodized and Kanizen plated
- Condition: New
- Country of origin: Japan
In the box
One brake master cylinder with its reservoir, reservoir cap and a gasket or seal. Mounting hardware, mounting bracket, bleeder screw, bleeder hoses, dust boot, push rod, brake booster and sensor are not included, so plan on new mounting hardware, since the old pieces may not be reusable.
Interchange: 47201-60290
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Does this Land Cruiser master cylinder fit the 1984-1987 Toyota Land Cruiser?
Yes. ADVICS BMT-022 is listed for the 1984-1987 Toyota Land Cruiser, and that vehicle takes one master cylinder.
Does the ADVICS BMT-022 come with the reservoir and cap?
Yes. The ADVICS BMT-022 comes with its plastic reservoir, cap and a gasket or seal. The push rod, brake booster, bleeder screw and mounting hardware are not included.
What bore size and outlet threads does this brake master cylinder have?
The bore is 22.22 mm, and both the primary and secondary outlets use an M10 - 1.0 thread. This master cylinder has two ports and a single reservoir.
Is 47201-60290 an interchange number for the ADVICS BMT-022?
Yes. 47201-60290 is listed as an interchange number that this ADVICS BMT-022 brake master cylinder replaces.
Is this ADVICS master cylinder plated against corrosion?
Yes. It is anodized and Kanizen plated, and the finishes and coatings applied provide corrosion protection. The cylinder body is cast iron.
