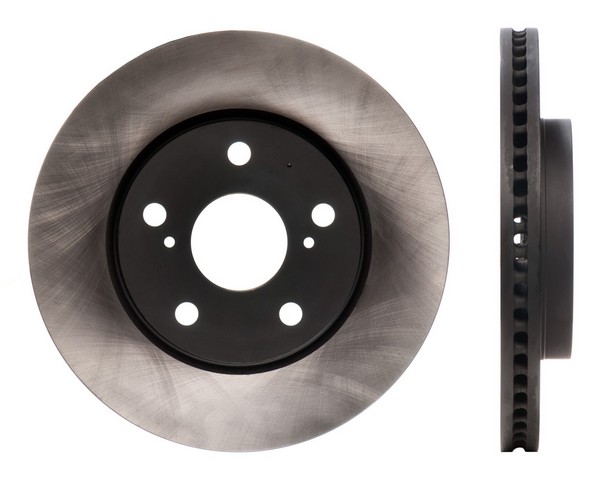

Keep every stop smooth and stable with the ADVICS OE Disc Brake Rotor (A6F050), a direct-fit replacement for the 2008-2015 Scion xB, 2009-2018 Toyota RAV4, 2010-2012 Lexus HS250h, and 2012-2018 Toyota Prius V (all engines). It's built to OEM weight, vane count, and air gap so it drops in like the original.
- Cast, high-carbon build: Full-cast using high-carbon metallurgy to help maintain thermal stability and reduce opportunities for warping.
- Vented rotor: Internal cooling vanes let air flow freely and efficiently to shed heat.
- Corrosion protection: Rust-resistant coating applied to match OEMs, with a coated hat finish.
- Non-directional surface: A smooth, non-directional finish for use on either side of the axle.
Specifications: 275 mm outside diameter, 174 mm inside diameter, 62 mm center hole, 46 mm overall height, 25 mm nominal thickness with a 22 mm discard thickness, and five mounting bolt holes on a 114.3 mm bolt circle. Made in the United States. Rotors wear as a matched pair, so replacing both sides together is recommended for even, balanced braking. This rotor is sold individually, and the listed applications use two per vehicle.
Interchange: Manufacturer part number A6F050.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Will this rotor fit my vehicle?
It's a direct-fit replacement for the 2008-2015 Scion xB, 2009-2018 Toyota RAV4, 2010-2012 Lexus HS250h, and 2012-2018 Toyota Prius V (all engines). Check the Buyer's Guide tab to confirm.
Is this a vented or solid rotor?
It's a vented rotor with internal cooling vanes that let air flow through for heat dissipation.
What is this rotor made of?
It's a full-cast rotor made with high-carbon metallurgy for thermal stability, finished with a rust-resistant coating and a coated hat.
How many rotors do I need?
The listed applications use two per vehicle. Rotors are sold individually, so order two and replace both sides together as a matched pair for even, balanced braking.
What are the key dimensions?
275 mm outside diameter, 174 mm inside diameter, 62 mm center hole, 25 mm nominal thickness, 22 mm discard thickness, and five bolt holes on a 114.3 mm circle.
