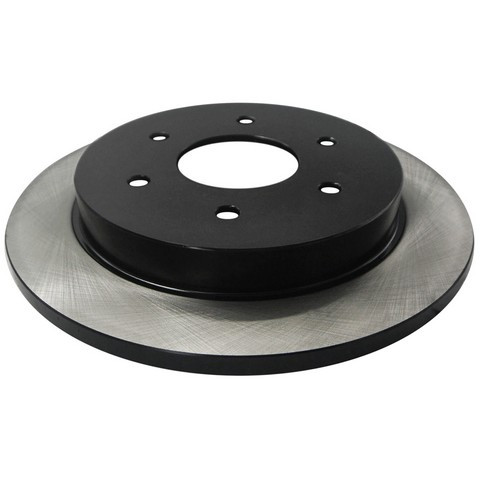

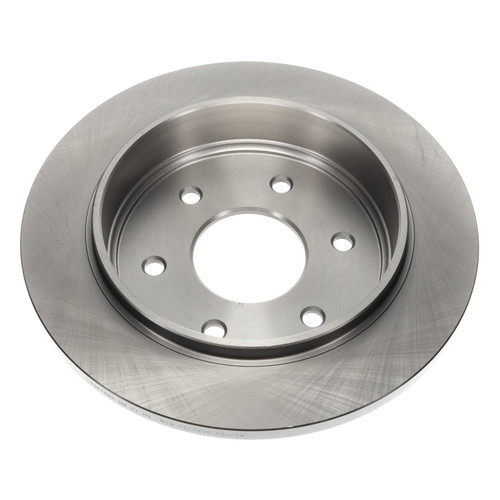

ADVICS B6R074U rear brake rotor for the 2004-2015 Nissan Titan and other vehicles gives the brake pads a surface to press against to slow the wheel. This is one of the ADVICS brake rotors sold as an OE replacement, built to OEM weight from high carbon steel.
- High carbon metallurgy for thermal stability, which reduces opportunities for warping
- Longer pad and rotor life from the thermally stable construction
- Corrosion protection coating
- Smooth surface with a non-directional finish
- Sold in the ADVICS OE Replacement line
Quick facts
- Part: ADVICS B6R074U brake rotor
- Also called: disc brake rotor
- Fits: 2004-2015 Nissan Titan and other vehicles
- Position: Rear
- Material: High Carbon
- Condition: New
Brake pedal pulsation, grooves in the rotor face or a thickness below the discard figure can mean a rotor is worn. These signs alone do not prove the rotor is at fault, since a sticking caliper can cause similar symptoms. This listing is one rotor, both rear rotors are normally replaced together, and the 2004-2015 Nissan Titan takes two.
Fits
Listed for a wide range of Nissan and Infiniti models, led by the 2004-2015 Nissan Titan, the 2005-2015 Nissan Armada and the 2004-2010 Infiniti QX56. If your car is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Outside diameter: 319.5 mm (12.579 in)
- Center hole diameter: 82.1 mm
- Bolt circle: 139.7 mm (5.5 in), 6 lug holes
- Overall height: 58.1 mm (2.287 in)
- Nominal thickness: 14.0 mm (0.551 in)
- Discard thickness: 12.0 mm (0.472 in)
Build and materials
- Type: Solid
- Surface: Smooth, non-directional finish
- Material: High Carbon
- ABS tone ring: not included
- Condition: New
- Country of origin: China
Interchange: 1407-77909 · 120.42081 · 121.42081 · 320.42081F · 604-67090
18A1618 · YH145475 · 31329 · 145475 · 40011057 · YH145475P · 402067S00 · 432067S000 · 432069FF0C · BR31329 · BD0208 · JBR994 · JBR994EVC · 980198 · 980198FZN · BD126387
This part cross-references / interchanges with the following part numbers:
18A1618, YH145475, 31329, 1407-77909, 145475, 40011057, YH145475P, 120.42081, 121.42081, 320.42081F, 402067S00, 432067S000, 432069FF0C, BR31329, 604-67090, BD0208, B6R074U, JBR994, JBR994EVC, 980198, 980198FZN, BD126387
Frequently Asked Questions
Is this rear Nissan Titan brake rotor right for a 2004-2015 Titan?
Yes. ADVICS B6R074U is a rear rotor listed for the 2004-2015 Nissan Titan, which takes two.
Do these Armada brake rotors work for the 2005-2015 Nissan Armada?
Yes. ADVICS B6R074U is a rear rotor listed for the 2005-2015 Nissan Armada, two per vehicle. For other vehicles, look in the "Vehicles it fits" section.
Is this disc brake rotor solid or vented?
Solid. This rear rotor has a smooth surface with a non-directional finish, a 319.5 mm outside diameter and a 14.0 mm nominal thickness.
At what thickness should this rear rotor be replaced?
Replace it once it wears to the 12.0 mm (0.472 in) discard thickness. A new ADVICS B6R074U measures 14.0 mm (0.551 in) nominal.
Does this rear rotor include an ABS tone ring?
No, the ABS tone ring is not included. The rotor has an 82.1 mm center hole and a 139.7 mm bolt circle with 6 lug holes.
