Rear Brake Rotor for 2012-2016 Honda CR-V & More - Advics C6R397U

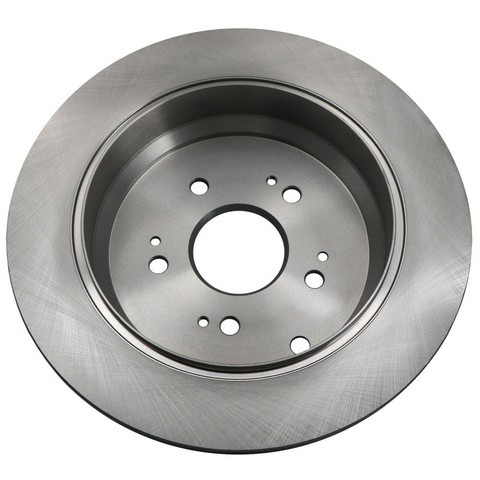

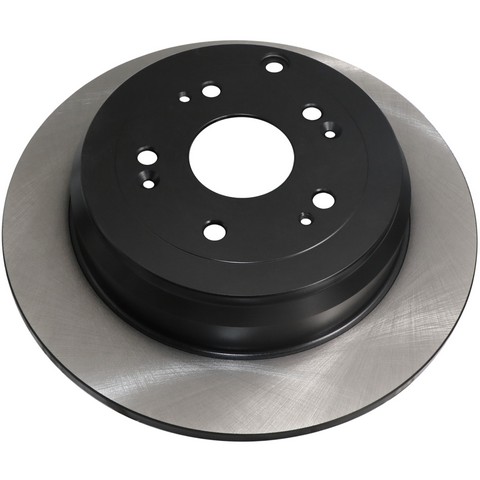

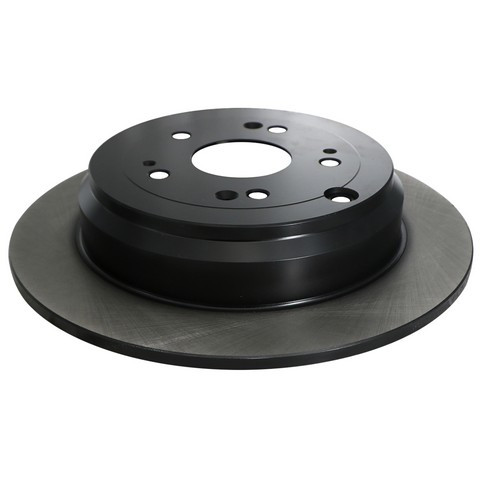

Give your rear brakes a fresh friction surface with the ADVICS OE Disc Brake Rotor C6R397U, a rear rotor that installs as a direct-fit replacement for the 2012-2016 Honda CR-V and 2013-2018 Acura RDX. ADVICS manufactures its OE rotors to the highest specifications available, and this one pairs high-carbon metallurgy with a corrosion protection coating.
- Built to OEM weight: Constructed to original-equipment weight using high-carbon metallurgy, which helps maintain thermal stability. That is designed to reduce opportunities for warping and support longer pad and rotor life.
- Corrosion protection: A corrosion protection coating is applied to match OEMs.
- Solid construction: Solid (non-vented) rotor with a smooth surface and a non-directional brake surface finish.
- Key dimensions: 305 mm (12.008 in) outside diameter, 9.0 mm (0.354 in) nominal thickness, 7.5 mm (0.295 in) discard thickness, 61.0 mm (2.402 in) overall height, 64.1 mm center hole, and five lug holes on a 114.3 mm (4.5 in) bolt circle.
If your 2012-2016 Honda CR-V rear rotors show pedal pulsation, grinding or scraping noises, deep scoring, or have worn to the 7.5 mm discard thickness, it may be time to replace them. The ABS tone ring is not included. The listed applications use two rear rotors. Each rotor is sold individually and this listing is for one; replacing both sides together as a matched pair is recommended for even, balanced braking. Country of origin: China.
Interchange: 120.40063 · 604-59048
12040063 · 60459048 · 18A81041 · 42510T0GA02 · 42510T0GA04 · 42510TX4A01 · 42510TX4A02 · YH145678 · 31372 · 31649 · 44317 · 26011549 · 980294 · 981041 · 981041FZN
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Are these 2012-2016 Honda CR-V rotors for the front or rear?
ADVICS C6R397U is a rear rotor for the 2012-2016 Honda CR-V and the 2013-2018 Acura RDX.
Is this the right brake rotor for a 2013-2018 Acura RDX?
C6R397U is listed as a rear rotor for the 2013-2018 Acura RDX with all engines. It measures 305 mm in diameter, has a 9.0 mm nominal thickness, and uses five lug holes on a 114.3 mm bolt circle.
Should I replace brake pads and rotors at the same time?
This listing is for one rotor only, and pads are sold separately. Many installers fit new pads with new rotors so both friction surfaces wear in together.
How many rotors do I need?
The listed applications use two rear rotors. Each rotor is sold individually, and replacing both sides together as a matched pair is recommended for even, balanced braking.
When should this rotor be replaced?
Replace it once it wears to the 7.5 mm (0.295 in) discard thickness. Pedal pulsation, grinding or deep scoring are signs a rotor may need replacing, so diagnose the cause first.
