A/C Condenser for 2006-2009 Chevrolet Equinox & More - Agility 7013468

$132.99

Vehicles this part fits

    Part number: 7013468
    UPC: 887548017796
    Condition: New
    Weight: 13.83 LBS
    Item Package Quantity: 1
    $132.99
    Adding to cart… The item has been added

    Have questions?

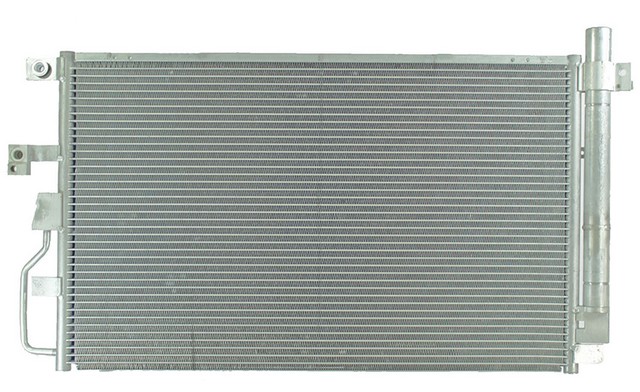

    Agility Autoparts A/C Condenser P/N:7013468
    Agility Autoparts A/C Condenser P/N:7013468
    $132.99
    $132.99

    Agility 7013468 A/C condenser for the 2006-2009 Chevrolet Equinox and other vehicles releases heat from the refrigerant in the A/C system. That turns hot refrigerant gas back into a liquid so the system can keep cooling the cabin.

    • Parallel flow core made of aluminum
    • Mini-micro extruded tube technology to increase thermal performance
    • Receiver/drier included with the condenser
    • Each A/C condenser is 100% leak tested

    Quick facts

    • Part: Agility 7013468 A/C condenser
    • Fits: 2006-2009 Chevrolet Equinox and other vehicles
    • Material: Aluminum
    • Condition: New

    Warm air from the vents, oily refrigerant residue on the core or bent, crushed fins can mean the A/C condenser is worn, though the compressor or the cooling fan can be behind the same signs, so find the cause before you replace it.

    Fits

    It fits the 2006-2009 Chevrolet Equinox and the 2006-2009 Pontiac Torrent. The A/C condenser is certified to meet or exceed OE specifications and is a drop-in fit.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core length: 27.375 in
    • Core height: 16.625 in
    • Core thickness: 0.625 in
    • Inlet fitting: block connection
    • Outlet fitting: block connection

    Build and materials

    • Core type: parallel flow
    • Core material: aluminum
    • Condition: New
    • Country of origin: China

    In the box

    One A/C condenser with a receiver/drier. A single condenser is all these vehicles need, and one is what this listing holds.

    Installation notes

    • Ready to install right out of the box.
    • This A/C condenser cannot be properly flushed.

    Interchange: 15-63245 · 477-0774 · 31-3468 · 7-3468
    P40491P · 3468 · AC3468 · 15781440 · AUC3468 · 40491 · 640477 · 1040491 · 2327

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    15-63245, P40491P, 3468, AC3468, 477-0774, 15781440, AUC3468, 40491, 640477, 31-3468, 7-3468, 1040491, 2327

    Frequently Asked Questions

    Is this the A/C condenser for the 2006-2009 Chevy Equinox?

    Yes. Agility 7013468 fits the 2006-2009 Chevrolet Equinox and the 2006-2009 Pontiac Torrent, and these vehicles take one condenser.

    Does this A/C condenser come with a receiver/drier?

    Yes. The listing is one A/C condenser with a receiver/drier included, so the drier does not need to be bought separately.

    What size is the core on this parallel flow A/C condenser?

    The Agility 7013468 aluminum core is 27.375 in long, 16.625 in high and 0.625 in thick, with block connection fittings on the inlet and outlet.

    What should I look for on a damaged A/C condenser core?

    With the engine off and cool, look for bent or crushed fins and oily residue on the core. A shop can pressure-test the A/C system, which you should not open yourself.

    Can I flush this A/C condenser during installation?

    No. This A/C condenser cannot be properly flushed. It is ready to install right out of the box.
