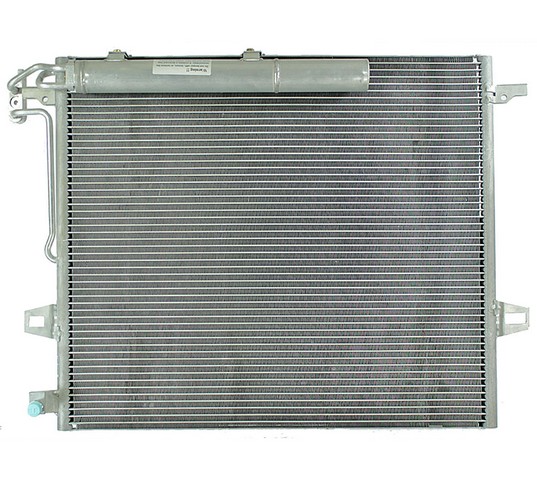

Help your air conditioning system shed heat the way it was designed to with the Agility Autoparts A/C Condenser 7013478, a parallel-flow unit with an aluminum core that comes with a receiver/drier. It fits many vehicles, among them the 2006-2013 Mercedes-Benz ML350, 2010-2012 Mercedes-Benz GL350 and 2007-2012 Mercedes-Benz GL450. See the Buyer's Guide tab for the full list.
The condenser sits in the refrigerant loop and releases heat from the hot, high-pressure refrigerant coming from the compressor so it can condense back into a liquid before continuing through the system. If a leaking, clogged or damaged condenser is the cause of weak cooling, this unit replaces it.
Specifications: Core type: parallel flow. Core material: aluminum. Core length: 21.000 in. Core height: 19.000 in. Core thickness: 0.750 in. Inlet and outlet fittings: block connection. The listed applications use one condenser. Agility notes that this condenser cannot be properly flushed. Part finish and color may vary. Country of origin: China.
Interchange: 31-3478 · 7-3478
3478 · AUC3478 · 2515000054 · 1040485 · 6564 · 313478 · 73478
This part cross-references / interchanges with the following part numbers:
Which vehicles does the Agility 7013478 A/C condenser fit?
It fits many vehicles, among them the 2006-2013 Mercedes-Benz ML350, 2010-2012 Mercedes-Benz GL350 and 2007-2012 Mercedes-Benz GL450. See the Buyer's Guide tab for the full list.
Does this condenser come with a receiver/drier?
Yes. Agility lists this condenser as including a receiver/drier. The listed applications use one condenser.
What are the core dimensions of the 7013478?
The parallel-flow aluminum core measures 21.000 in long, 19.000 in high and 0.750 in thick, with block-connection inlet and outlet fittings.
Can this condenser be flushed during A/C service?
No. Agility notes this condenser cannot be properly flushed, so follow the vehicle service information for the correct A/C system service procedure.
What are signs an A/C condenser may need replacing?
Common signs include warm air from the vents, refrigerant leaks at the core or fittings, and bent or damaged fins. Diagnose the A/C system before replacing parts.
