Agility Autoparts A/C Condenser 7013868
Agility Autoparts A/C Condenser 7013868

Agility Autoparts A/C Condenser P/N:7013868

Be the first to review this product
$112.99
MPN: 7013868
UPC: 887548054685
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Agility Autoparts A/C Condenser P/N:7013868
Agility Autoparts A/C Condenser P/N:7013868
$112.99

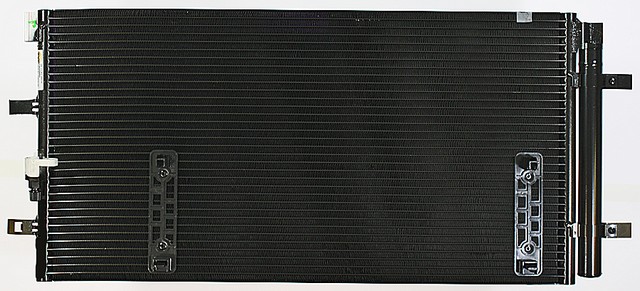

Move heat out of your air conditioning system with the Agility Autoparts A/C Condenser 7013868, a parallel-flow condenser that cools and condenses the high-pressure refrigerant vapor leaving the compressor back into a liquid before it reaches the expansion device. It drops in as a direct-fit replacement for the 2008-2012 Audi A5, 2008-2012 Audi A5 Quattro, 2008-2012 Audi S5, 2009-2012 Audi Q5, 2010-2012 Audi A4, 2010-2012 Audi A4 Quattro, 2010-2011 Audi S4 and 2011 Audi RS5 (all engines).

  • Parallel-flow aluminum core: aluminum construction with mini-micro extruded tube technology for strong thermal performance; core measures 0.625 in thick, 13.375 in high and 25.250 in long.
  • Block connection fittings: block-type inlet and outlet connections.
  • Includes receiver/drier: ships with the receiver/drier already fitted.
  • Quality checked: engineered and built under ISO TS16949 quality systems, 100% leak tested, and certified to meet or exceed OE specifications for a ready-to-install fit.

Because this condenser cannot be properly flushed, replacing it is recommended after a system contamination event. Part finish and color may vary. Country of origin: China.

Interchange: 477-0764 · 31-3868 · 7-3868
4770764 · 313868 · 73868 · 8K0260403AB · 8K0260403AF · 8K0260403M · 3910 · 3868 · AUC3868 · 3988 · 1040764

This part cross-references / interchanges with the following part numbers:

8K0260403AB, 8K0260403AF, 8K0260403M, 3910, 477-0764, 3868, AUC3868, 3988, 31-3868, 7-3868, 1040764

Frequently Asked Questions

What does this A/C condenser do?

It cools and condenses the high-pressure refrigerant vapor leaving the A/C compressor back into a liquid, releasing heat so the system can produce cold air. It's a parallel-flow aluminum condenser.

Which vehicles does condenser 7013868 fit?

It's a direct-fit replacement for the 2010-2012 Audi A4 and A4 Quattro, 2008-2012 Audi A5, A5 Quattro and S5, 2009-2012 Audi Q5, 2011 Audi RS5, and 2010-2011 Audi S4 (all engines).

Does this condenser include a receiver/drier?

Yes. Per the catalog, this condenser ships with the receiver/drier included.

What type of fittings does it use?

Both the inlet and outlet use block connection fittings, matching the parallel-flow core design.

Can this condenser be flushed after a system failure?

No. The manufacturer notes this condenser cannot be properly flushed, so replacement is recommended after a system contamination event rather than attempting to flush the old unit.
