Agility Autoparts A/C Condenser P/N:7014648

Be the first to review this product

$58.99

MPN: 7014648

UPC: 887548021311

Item Package Quantity: 1

Current Stock:

Have questions?

Ask an Expert

Agility Autoparts A/C Condenser P/N:7014648

$58.99

Description

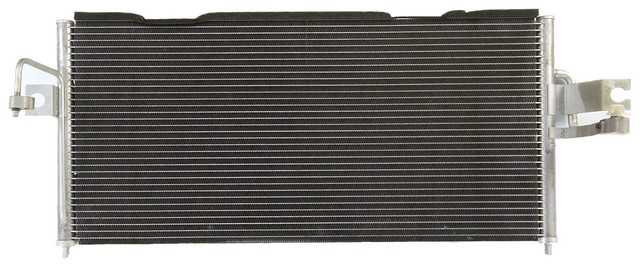

Keep your air conditioning refrigerant cycling from hot high-pressure vapor to cooler liquid with the Agility Auto Parts A/C Condenser (P/N 7014648). The condenser sits at the front of the system and sheds heat from the refrigerant so it can condense before heading to the expansion valve. It installs as a direct-fit replacement for the 1995-1997 Nissan 200SX and 1995-1997 Nissan Sentra (all engines).

Parallel-flow aluminum core: a parallel-flow design with an aluminum core measuring 0.750 in thick, 11.500 in high, and 27.125 in long.
Block-connection fittings: inlet and outlet both use block connections.
Quality tested: engineered and manufactured under ISO TS16949 quality systems and 100% leak tested.
OE-level spec: built to meet or exceed OE specifications for the listed applications.

Note: this condenser cannot be properly flushed, so replace it rather than attempting to flush it during a repair. Part finish and color may vary. Country of origin: China.

Interchange: 24-20013 · 31-4648 · 7-4648
2420013 · 314648 · 74648 · A2385 · P40009P · 4648 · AC4648 · CF1118 · AUC4648 · 4A0260403AB · 921104B001 · 9211186Y00 · 40009 · 640009 · 1040009 · 6452

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

A2385, P40009P, 4648, AC4648, CF1118, AUC4648, 4A0260403AB, 921104B001, 9211186Y00, 40009, 24-20013, 640009, 31-4648, 7-4648, 1040009, 6452

Frequently Asked Questions

What does this A/C condenser do?

It sits at the front of the A/C system and rejects heat from the high-pressure refrigerant, condensing it from a hot vapor into a cooler liquid before it flows toward the expansion valve.

Which vehicles does P/N 7014648 fit?

It's a direct-fit replacement for the 1995-1997 Nissan 200SX and 1995-1997 Nissan Sentra (all engines). Check the Buyer's Guide tab to confirm fitment for your vehicle.

What type of core does it use?

It uses a parallel-flow aluminum core measuring 0.750 in thick, 11.500 in high, and 27.125 in long, with block-connection inlet and outlet fittings.

Can this condenser be flushed?

No. Per the manufacturer notice, this condenser cannot be properly flushed, so it should be replaced rather than flushed when servicing the A/C system.

Is it quality tested?

Yes. It's engineered and manufactured under ISO TS16949 quality systems, is 100% leak tested, and is built to meet or exceed OE specifications for the listed applications.
