Agility Autoparts A/C Condenser 7014696
Agility Autoparts A/C Condenser 7014696

Agility Autoparts A/C Condenser P/N:7014696

Be the first to review this product
$66.99
MPN: 7014696
UPC: 887548074652
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Agility Autoparts A/C Condenser P/N:7014696
Agility Autoparts A/C Condenser P/N:7014696
$66.99

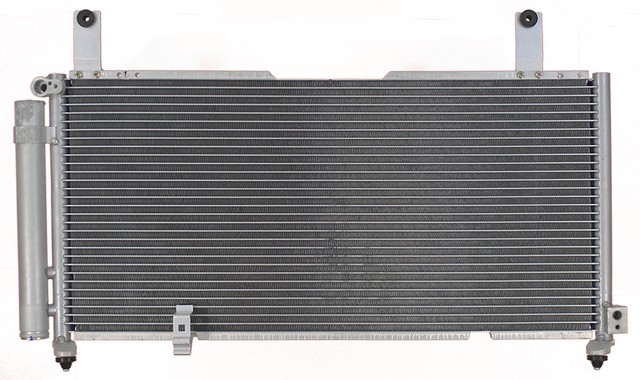

Keep the refrigerant flowing cold with the Agility Auto Parts A/C Condenser 7014696, a parallel-flow condenser that sheds heat from the high-pressure refrigerant and condenses it from vapor to liquid on its way to the expansion device. It drops in as a direct-fit replacement for the 2002-2006 Suzuki Aerio [All], so a corroded, bent, or leaking original can be swapped out without guesswork.

  • Parallel-flow aluminum core: Parallel-flow construction with an aluminum core measuring 25.125 in long, 11.750 in high, and 0.625 in thick for efficient heat rejection.
  • Block-connection fittings: Block-style inlet and outlet fittings.
  • Receiver/drier included: Ships with the receiver/drier so you have the desiccant assembly on hand.
  • Certified & leak tested: Built to meet or exceed OE specifications, engineered under ISO/TS 16949 quality systems, and 100% leak tested for a ready-to-install fit.

Note: this condenser cannot be properly flushed, so plan your A/C service accordingly. Country of origin: China. Signs a condenser may need replacing include reduced cooling, visible refrigerant leaks or oil residue at the core, and physical impact damage to the fins.

Interchange: 31-4696 · 7-4696
314696 · 74696 · 4696 · AUC4696 · 9531054G31 · 1040421

This part cross-references / interchanges with the following part numbers:

4696, AUC4696, 31-4696, 7-4696, 9531054G31, 1040421

Frequently Asked Questions

What vehicle does this condenser fit?

It is a direct-fit replacement for the 2002-2006 Suzuki Aerio [All]. Confirm fitment for your vehicle before ordering.

Does it include the receiver/drier?

Yes. Per the catalog, this condenser includes the receiver/drier assembly.

What type of core does it use?

It uses a parallel-flow aluminum core with block-connection inlet and outlet fittings.

Can this condenser be flushed during A/C service?

No. The manufacturer notes that this condenser cannot be properly flushed, so plan your A/C service around that limitation.

What are the core dimensions?

The core measures 25.125 in long by 11.750 in high with a 0.625 in thickness.
