Electric Fuel Pump for 1985-1987 Chevrolet Camaro & More - Agility 4020167

$26.99

Vehicles this part fits

    Part number: 4020167
    UPC: 887548222763
    Condition: New
    Weight: 0.60 LBS
    Item Package Quantity: 1
    $26.99
    Adding to cart… The item has been added

    Have questions?

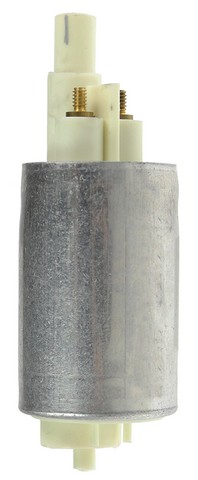

    Agility Autoparts Electric Fuel Pump P/N:4020167
    Agility Autoparts Electric Fuel Pump P/N:4020167
    $26.99
    $26.99

    Keep fuel moving from the tank to the engine with the Agility Auto Parts Electric Fuel Pump 4020167. It drops in as a direct-fit replacement for the 1984 Chevrolet Celebrity (V6-2.8L), 1985-1987 Chevrolet Camaro (V8-5.0L) and 1985-1987 Pontiac Firebird (V8-5.0L), pulling fuel through its strainer inlet and pushing it out the hose-style outlet to feed the fuel system.

    • Flow & pressure: rated for a maximum flow of 35 U.S. gallons per hour and a maximum pressure of 5 PSI, running on 12 volts DC.
    • Fittings: strainer inlet with a 0.375 in outside-diameter outlet designed for hose connection.
    • Tested & validated: engineered to meet or exceed OEM specifications and checked for pressure characteristics, flow rates, electrostatic discharge, plus 100% leak testing.
    • Ready to install: a drop-in replacement supplied with the necessary components right out of the box.

    Signs the original pump may need replacing include long crank times, hard starting, stalling, loss of power under load, or a no-start when the pump stops delivering fuel. If a failed fuel pump is the cause, this unit replaces it. Made in China.

    Interchange: E3903 · P60488 · P74050 · P88012 · P90070 · 25115110 · 25115461 · 6472408 · SP1355 · USEP3105 · USEP3903

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    E3903, P60488, P74050, P88012, P90070, 25115110, 25115461, 6472408, SP1355, USEP3105, USEP3903

    Frequently Asked Questions

    What vehicles does this fuel pump fit?

    It fits the 1984 Chevrolet Celebrity (V6-2.8L), 1985-1987 Chevrolet Camaro (V8-5.0L) and 1985-1987 Pontiac Firebird (V8-5.0L). Check the "Vehicles it fits" section to confirm your vehicle.

    What are the flow and pressure ratings?

    It is rated for a maximum flow of 35 U.S. gallons per hour and a maximum pressure of 5 PSI, operating on 12 volts DC.

    What type of inlet and outlet does it have?

    It has a strainer-type inlet and a 0.375 in outside-diameter outlet designed for a hose connection.

    What are common signs of a failing fuel pump?

    Long crank times, hard starting, stalling, loss of power under load, or a no-start can occur when the pump stops delivering fuel. Diagnose the cause before replacing.

    Does it come ready to install?

    Yes. It is a drop-in replacement supplied with the necessary components right out of the box, and it is tested for pressure, flow, ESD, and 100% leak testing.
