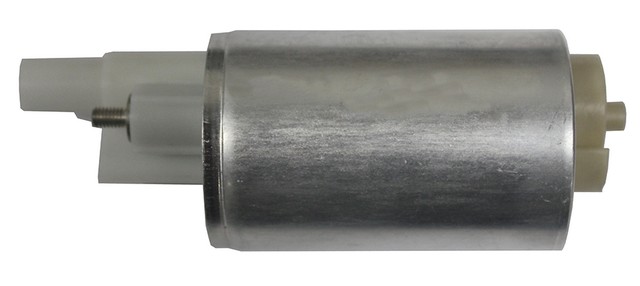

Agility Autoparts Electric Fuel Pump P/N:4020169
Agility Autoparts Electric Fuel Pump P/N:4020169
$22.99

Keep fuel flowing to the engine with the Agility Auto Parts Electric Fuel Pump 4020169 — a right-side, in-tank replacement that drops in across a wide range of 1984–2002 GM, Ford and Mercury applications. It fits cars like the 1984 Chevrolet Camaro [V8-5.0L], 1984 Pontiac Firebird [V8-5.0L], 1984-1986 Ford LTD [V6-3.8L], 1984 Ford Thunderbird [V6-3.8L, V8-5.0L] and 1984 Mercury Cougar [V6-3.8L, V8-5.0L], plus the medium-duty Chevrolet Kodiak and GMC Topkick trucks [V8-6.0L, V8-7.0L, V8-7.4L, V8-8.1L]. See the Buyer's Guide tab for the full list of 40 applications.

  • Flow & pressure: rated up to 40 U.S. gallons per hour and a maximum 4 PSI, running on 12V DC.
  • Connections: strainer inlet with a 0.375-inch outlet outside diameter designed for a hose connection.
  • Built & tested: engineered and manufactured in a highly automated, dust-free environment; meets or exceeds all OEM specifications, with testing for pressure characteristics, flowrates, electrostatic discharge, and 100% leak testing.
  • Drop-in: installs right out of the box with the necessary components included.

Signs the original pump may need replacing include hard starting, sputtering, or a loss of fuel delivery under load. Country of origin: China.

Interchange: E3735 · P74067 · FE0008 · FE0052 · FE0065 · E4DZ9H307B · 25121207 · 6472395 · SP1201 · USEP3735

This part cross-references / interchanges with the following part numbers:

E3735, P74067, FE0008, FE0052, FE0065, E4DZ9H307B, 25121207, 6472395, SP1201, USEP3735

Frequently Asked Questions

What is the flow and pressure rating of this fuel pump?

It is rated for a maximum flow of 40 U.S. gallons per hour and a maximum pressure of 4 PSI, operating on 12V DC.

Where is this pump mounted?

It is a right-side, in-tank electric fuel pump, so it is installed inside the fuel tank on the right side per the application.

What are the inlet and outlet connections?

It uses a strainer-type inlet and a 0.375-inch outside-diameter outlet designed for a hose connection.

Does this pump fit my vehicle?

It covers 40 applications, including the 1984 Camaro, 1984 Firebird, 1984-1986 Ford LTD, and Chevrolet Kodiak/GMC Topkick trucks. Check the Buyer's Guide tab for the full list.

Does it come ready to install?

Yes. Agility electric fuel pumps are drop-in replacements right out of the box with the necessary components included.
