Agility Autoparts Electric Fuel Pump 4020343
Agility Autoparts Electric Fuel Pump 4020343

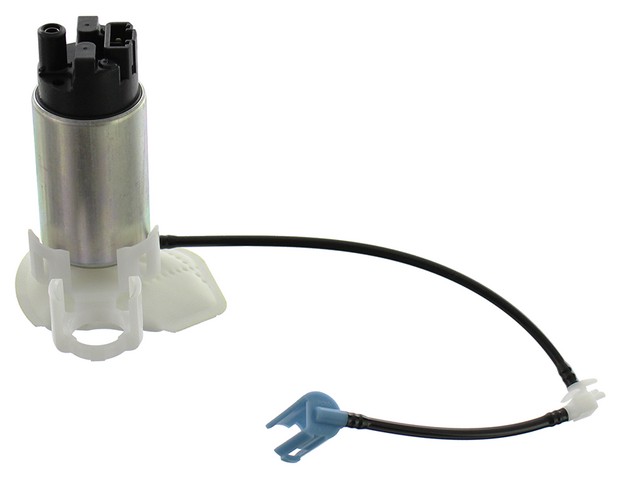

Agility Autoparts Electric Fuel Pump P/N:4020343

Be the first to review this product
$54.99
MPN: 4020343
UPC: 887548223470
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Agility Autoparts Electric Fuel Pump P/N:4020343
Agility Autoparts Electric Fuel Pump P/N:4020343
$54.99

Keep fuel moving to the engine with the Agility Auto Parts Electric Fuel Pump 4020343, a drop-in replacement for the 2011-2017 Lexus CT200h (L4-1.8L), 2008-2014 Scion xD (L4-1.8L), 2010-2011 Toyota Prius (L4-1.8L), 2012-2021 Toyota Prius C (L4-1.5L), 2012-2018 Toyota Prius V (L4-1.8L), and 2012-2019 Toyota Yaris (L4-1.5L). The electric pump draws fuel through a strainer inlet and delivers it toward the engine's fuel system; if a worn or failing pump is the cause of hard starting, stalling, or low fuel pressure, this unit replaces it.

  • Rated flow and pressure: maximum flow rating of 55 U.S. gallons per hour and maximum pressure of 50 PSI, running on 12 volts DC.
  • Connections: strainer inlet with a hose-style outlet measuring 0.3125 in outside diameter.
  • Built and tested: engineered and manufactured in a highly automated, dust-free environment and rated to meet or exceed OEM specifications, with performance and reliability testing for pressure, flow rate, electrostatic discharge, and 100% leak testing.
  • Ready to install: designed to drop in out of the box with the necessary components included.

Country of origin: Thailand.

Interchange: E8912 · P76825 · SP1316 · 2322021211 · 2322047010 · USEP8912

This part cross-references / interchanges with the following part numbers:

E8912, P76825, SP1316, 2322021211, 2322047010, USEP8912

Frequently Asked Questions

What vehicles does this fuel pump fit?

It's a direct-fit replacement for the 2011-2017 Lexus CT200h, 2008-2014 Scion xD, 2010-2011 Toyota Prius, 2012-2021 Toyota Prius C, 2012-2018 Toyota Prius V, and 2012-2019 Toyota Yaris. See the Buyer's Guide tab to confirm your engine.

What are the flow and pressure ratings?

This pump has a maximum flow rating of 55 U.S. gallons per hour and a maximum pressure of 50 PSI, operating on 12 volts DC.

What type of inlet and outlet does it have?

It uses a strainer inlet and a hose-style outlet with a 0.3125 in outside diameter.

What are signs my fuel pump may need replacing?

Hard starting, stalling, sputtering under load, or low fuel pressure can indicate a failing pump. Diagnose the cause first, since these symptoms can have other sources.

Does it meet OEM specifications?

Agility rates these pumps to meet or exceed OEM specifications, with testing for pressure, flow rate, electrostatic discharge, and 100% leak testing.
