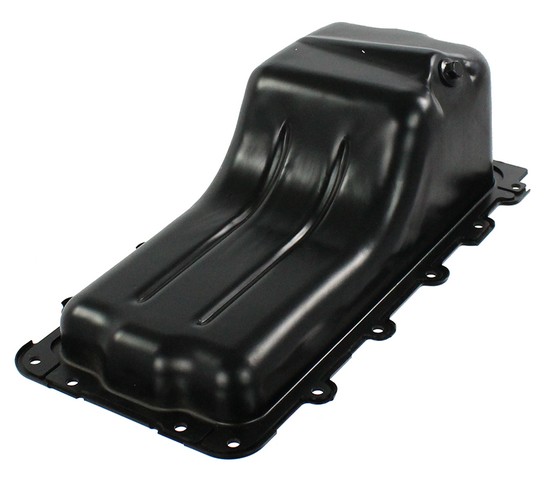

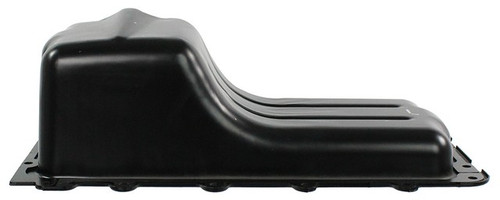

Agility 3310011 oil pan for the 1997-2003 Ford F-150 V8 4.6L or 5.4L and other vehicles catches and holds the engine oil at the bottom of the engine. Agility engineers its oil pans to meet or exceed every OEM specification.
- Steel pan body
- Baffled design
- Drain plug included
Quick facts
- Part: Agility 3310011 oil pan
- Also called: engine oil pan
- Fits: 1997-2003 Ford F-150 V8 4.6L or 5.4L and other vehicles
- Material: Steel
- Condition: New
Oil spots where the vehicle is parked, a dented or cracked pan, or a damaged drain thread can mean the pan needs replacing. These signs alone do not prove the pan is the problem, since a leaking valve cover gasket can leave oil in the same area. Each engine takes one pan.
Fits
It also fits the 1997-2002 Ford Expedition V8 4.6L or 5.4L and the 1997-1999 Ford F-250 V8 4.6L or 5.4L. If your truck or SUV is not named here, look for its year, model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Drain thread size: M14 x 1-1/2
Build and materials
- Material: Steel
- Baffled: Yes
- Condition: New
- Country of origin: China
In the box
One oil pan with its drain plug. A windage tray is not included.
Interchange: 264-041 · 311-00811A · 311-00811B
KFP26A · XL1Z6675CA · FP26A
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
KFP26A, 264-041, XL1Z6675CA, 311-00811A, 311-00811B, FP26A
Frequently Asked Questions
Does the Agility 3310011 work as a Ford F-150 oil pan for a 1997-2003 truck with the V8 4.6L or 5.4L?
Yes. Agility 3310011 fits the 1997-2003 Ford F-150 V8 4.6L or 5.4L. Owners of other models can look up their year and engine in the "Vehicles it fits" section.
Will this Ford Expedition oil pan fit a 1997-2002 Expedition with the V8 4.6L or 5.4L?
Yes. Agility 3310011 fits the 1997-2002 Ford Expedition V8 4.6L or 5.4L, and each engine takes one pan.
Does this engine oil pan come with a drain plug?
Yes, the drain plug is included, with an M14 x 1-1/2 drain thread. A windage tray is not included.
Is the Agility 3310011 pan made of steel, and is it baffled?
Yes. Agility 3310011 is a steel pan with a baffled design.
How can I tell if a steel oil pan is leaking or damaged?
Look for oil spots where the vehicle is parked, and for dents, cracks or rust you can see with the engine off and cool. A shop can inspect the pan itself and should check a suspected leak promptly.
