Oil Pan for 1988-1992 Toyota Corolla & More - Agility 3310048

$48.99

Vehicles this part fits

    Part number: 3310048
    UPC: 887548385581
    Condition: New
    Weight: 7.38 LBS
    Item Package Quantity: 1
    $48.99
    Adding to cart… The item has been added

    Have questions?

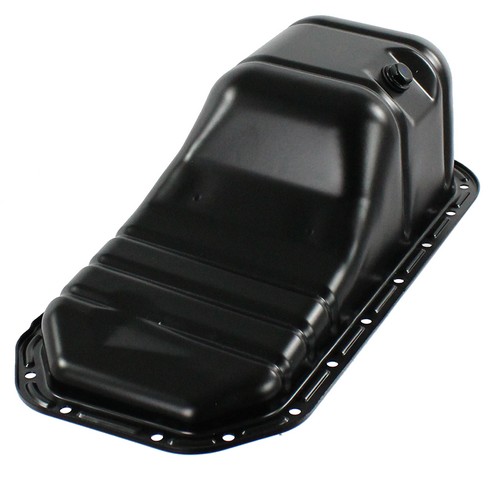

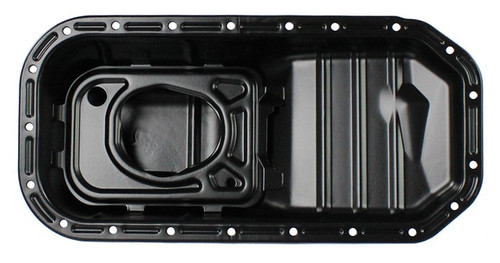

    Agility Autoparts Engine Oil Pan P/N:3310048
    Agility Autoparts Engine Oil Pan P/N:3310048
    $48.99
    $48.99

    Keep your engine's oil supply sealed in and ready for the pump with the Agility Auto Parts Oil Pan, part number 3310048, a steel, baffled pan that forms the oil reservoir at the bottom of the engine. It fits many vehicles, among them the 1988-1992 Toyota Corolla, 1990-1993 Toyota Celica and 1988-1989 Toyota MR2 with the L4-1.6L engine, as a direct-fit replacement for the listed applications. See the "Vehicles it fits" section for the full list.

    Agility supplies a broad line of oil pans for a wide variety of North American vehicle applications, and states that its pans are engineered to OEM specifications or better.

    • Material: steel construction.
    • Baffled: the built-in baffle helps limit oil movement away from the pickup.
    • Drain plug included: drain thread size is M12 x 1-1/4.
    • Windage tray: not included.

    The oil pan closes off the bottom of the engine and holds the oil that the pump draws up through the pickup. Signs that a pan may need replacing include oil leaks from the pan, dents or punctures from road debris, heavy rust, or damaged drain threads. If the original pan is the source of the problem, this unit replaces it. The listed applications use one pan. Consult the vehicle service information for the correct gasket or sealant and bolt torque. Country of origin: Taiwan.

    Interchange: 264-300 · 311-58165 · 12101-15070
    KTOP2A · TOP02A · 264300 · 31158165 · 1210115070

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    KTOP2A, 264-300, 311-58165, TOP02A, 12101-15070

    Frequently Asked Questions

    Is this the right Toyota Corolla oil pan for my 1988-1992 Corolla with the L4-1.6L engine?

    It is listed as a direct-fit replacement for the 1988-1992 Toyota Corolla with the L4-1.6L engine. The "Vehicles it fits" section shows every listed vehicle.

    Will this also work as the oil pan for a 1990-1993 Toyota Celica with the L4-1.6L engine?

    Yes. It is listed for the 1990-1993 Toyota Celica and the 1988-1989 Toyota MR2 with the L4-1.6L engine. The "Vehicles it fits" section shows the rest of the listed vehicles.

    Does the engine oil pan come with a drain plug?

    Yes, a drain plug is included, and the drain thread size is M12 x 1-1/4. A windage tray is not included.

    What is this oil pan made of, and is it baffled?

    It is made of steel and has a baffled design. The baffle helps limit oil movement away from the pickup.

    What are signs an oil pan may need replacing?

    Common signs include oil leaking from the pan, dents or punctures from road debris, heavy rust, or damaged drain threads. Inspect the pan and its seal to find the leak source before replacing.
