Agility Autoparts Engine Oil Pan 3310086

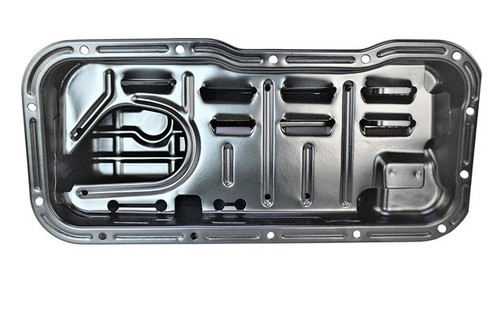

Agility Autoparts Engine Oil Pan 3310086 - view 2

Agility Autoparts Engine Oil Pan 3310086 - view 3

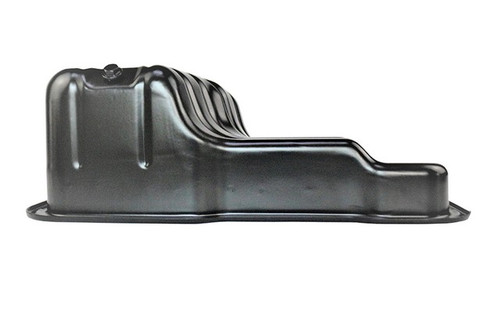

Agility Autoparts Engine Oil Pan 3310086 - view 4

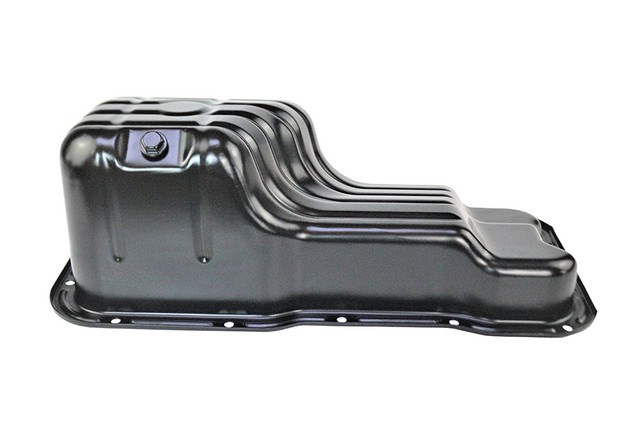

Agility Autoparts Engine Oil Pan P/N:3310086

Be the first to review this product

$63.99

MPN: 3310086

UPC: 887548385932

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Agility Autoparts Engine Oil Pan P/N:3310086

$63.99

Description

Give your engine's oil supply a solid steel home with the Agility Auto Parts Engine Oil Pan 3310086. This baffled steel sump bolts to the bottom of the block to hold the engine's oil reservoir and keep oil pooled around the pump pickup. It installs as a direct-fit replacement for the listed applications: 1989-1990 Nissan Pulsar NX (L4-1.6L), 1989-2000 Nissan Sentra (L4-1.6L), 1991-1993 Nissan NX (L4-1.6L), 1995-1998 Nissan 200SX (L4-1.6L), 1995-2004 Nissan Tsubame (L4-1.6L), 1995-2017 Nissan Tsuru (L4-1.6L), 1996-2000 Nissan Lucino (L4-1.6L), and 2000-2006 Nissan Sentra (L4-1.8L).

Steel build: made of steel for a durable oil reservoir at the base of the engine.
Internal baffle: a built-in baffle helps limit oil slosh during acceleration, braking, and cornering so the pickup stays submerged.
Drain plug included: ships with a drain plug and an M12 x 1-1/4 drain thread.
OE-level engineering: engineered to meet or exceed OEM specifications.

Note that a windage tray is not included. Signs an oil pan may need replacing include oil seeping from a dented, corroded, or cracked pan, or stripped, leaking drain-plug threads; diagnose the source of any leak before replacing. Country of origin: China. Manufacturer part number 3310086.

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

KNSP1A, 264-500, 311-58285, 311-58630, 111105M000, 11110-77A12, NSP01A

Frequently Asked Questions

What is the Agility Oil Pan 3310086 made of?

It's constructed of steel and includes a drain plug with an M12 x 1-1/4 drain thread.

Does it have a baffle or a windage tray?

It has a built-in baffle to help control oil movement and keep the pickup submerged, but a windage tray is not included.

What vehicles does this oil pan fit?

It's a direct-fit replacement for select 1989-2017 Nissan models, including the Sentra, 200SX, NX, Pulsar NX, Lucino, Tsubame, and Tsuru. See the Buyer's Guide tab for the full list.

Is the drain plug included?

Yes, the drain plug is included, and the pan uses an M12 x 1-1/4 drain thread.

How do I know if my oil pan needs replacing?

Common signs include oil leaks from a dented, cracked, or corroded pan, or damaged, leaking drain-plug threads. Diagnose the source of any leak before replacing.
