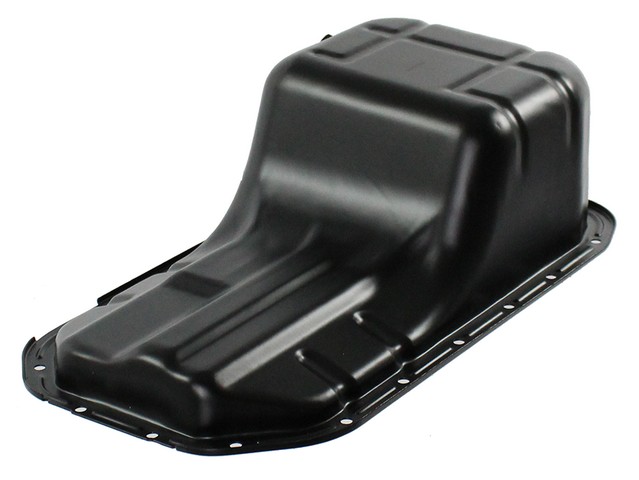

Replace a dented or leaking sump with the Agility Auto Parts Oil Pan 3310096, a direct-fit oil pan for the 1996-2000 Hyundai Elantra 1.8L / 2.0L and the 1997-2001 Hyundai Tiburon 1.8L / 2.0L. It covers the 1996-1998 Hyundai Elantra and 1997 Hyundai Tiburon with the L4-1.8L engine, and the 1999-2000 Hyundai Elantra and 1997-2001 Hyundai Tiburon with the L4-2.0L engine.
Mounted at the bottom of the engine, the oil pan holds the oil supply that the oil pump draws from. It also houses the drain plug used at oil changes.
Agility is a North American company with distribution warehouses in Canada and the United States. It offers a full line of oil pans for a wide variety of North American vehicles. The listed applications use one pan. Country of origin: Taiwan. When replacing the oil pan, consult the vehicle service information for the sealing method and bolt torque specifications.
Interchange: 264-801
KHYP2A · 2151023030 · HYP02A · 264801
This part cross-references / interchanges with the following part numbers:
Will this oil pan fit my 1996-2000 Hyundai Elantra 1.8L / 2.0L?
It is a direct-fit replacement for the 1996-2000 Hyundai Elantra 1.8L / 2.0L and the 1997-2001 Hyundai Tiburon 1.8L / 2.0L. Check the Buyer's Guide tab to confirm your exact year and engine.
What does an engine oil pan do?
It bolts to the bottom of the engine and holds the oil supply that the oil pump draws from. It also carries the drain plug used at oil changes.
Is a drain plug included?
Yes, a drain plug is included, and the drain thread size is M14 X 1-1/2. A windage tray is not included.
What are signs an oil pan may need replacing?
Signs include oil leaking from the pan body, a dent or puncture from road debris, or stripped drain-plug threads. Gaskets and seals can also leak, so confirm the source of the leak before you replace the pan.
What is this oil pan made of, and where is it made?
It is made of steel and is not baffled. Its country of origin is Taiwan.
