Agility Autoparts Engine Oil Pan 3310107

Agility Autoparts Engine Oil Pan 3310107 - view 2

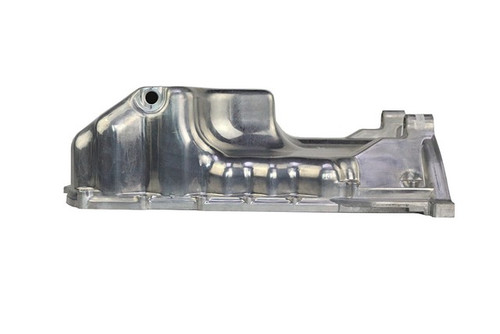

Agility Autoparts Engine Oil Pan 3310107 - view 3

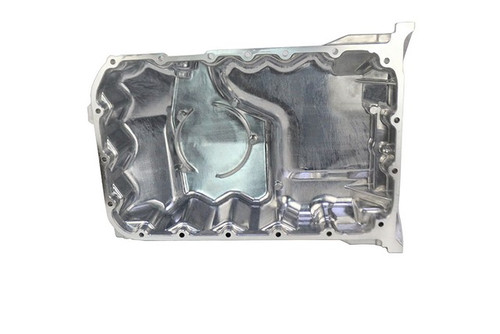

Agility Autoparts Engine Oil Pan 3310107 - view 4

Oil Pan for 2003-2004 Honda Pilot & More - Agility 3310107

Be the first to review this product

$104.99

MPN: 3310107

UPC: 887548386090

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

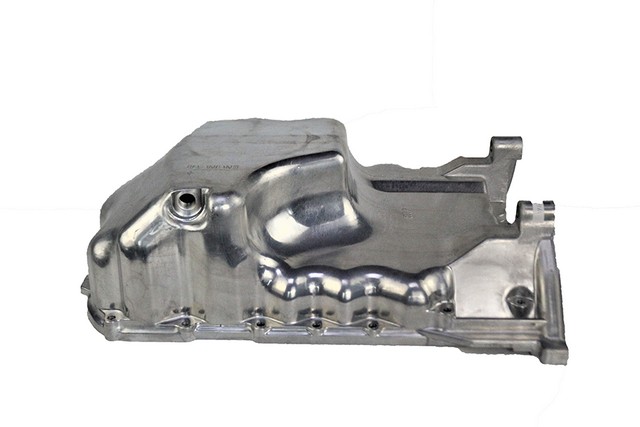

Agility Autoparts Engine Oil Pan P/N:3310107

$104.99

Description

Keep your engine's oil supply contained where it belongs with the Agility Auto Parts Oil Pan, part number 3310107, an aluminum pan that forms the oil reservoir at the base of the engine and comes with its drain plug. It fits many vehicles, among them the 2003-2004 Honda Pilot (V6-3.5L), 2001-2003 Acura CL (V6-3.2L) and 2002-2003 Acura TL (V6-3.2L). It is a direct-fit replacement for the listed applications; see the Buyer's Guide tab for the full list.

Material: aluminum.
Drain plug included: ships with a drain plug, and the drain thread size is M14 x 1-1/2.
Non-baffled design: the pan has no internal baffle, and a windage tray is not included.
Built to OEM standards: Agility designs its oil pans to match or surpass all OEM specifications.

The engine oil pan closes off the bottom of the crankcase. It holds the oil that the pump draws up to lubricate the engine. If a cracked, dented or leaking pan is causing oil loss, a 2003-2004 Honda Pilot V6-3.5L oil pan replacement with this unit replaces the damaged housing. The listed applications use one pan. Consult the vehicle service information for the correct sealing method, fasteners and torque. Agility is a North American company with distribution warehouses in Canada and the United States. Country of origin: China.

Interchange: 264-412 · 311-58660
264412 · 31158660 · 11200PGEA00 · HOP16A

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

264-412, 311-58660, 11200PGEA00, HOP16A

Frequently Asked Questions

Will this oil pan fit my 2002-2003 Acura TL 3.2L?

It is listed for the 2002-2003 Acura TL with the V6-3.2L engine. Check the Buyer's Guide tab to confirm your exact vehicle.

Can I use this as the oil pan on a 2003-2004 Honda Pilot 3.5L?

Yes. It is listed for the 2003-2004 Honda Pilot with the V6-3.5L engine, and the Buyer's Guide tab shows every listed vehicle.

Does the oil pan come with a drain plug?

Yes, a drain plug is included. The drain thread size is M14 x 1-1/2.

Is the pan baffled, and does it include a windage tray?

No. This aluminum pan is not baffled, and a windage tray is not included.

What are signs an oil pan may need replacing?

Signs include oil leaking from the pan itself, a cracked or dented pan, or damaged drain-plug threads. Confirm the leak source first, because nearby gaskets and seals can also leak.
