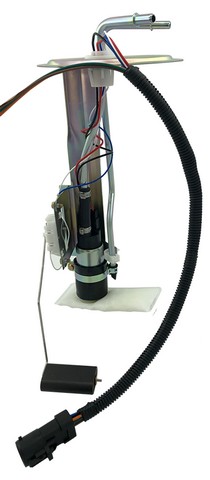

Agility Autoparts Fuel Pump and Sender Assembly P/N:4010219
$92.99
(You save)
Keep fuel moving from the tank to the engine with the Agility Auto Parts Fuel Pump and Sender Assembly (MPN 4010219). It installs as a direct-fit replacement for the 1999-2002 Lincoln Navigator [V8-5.4L], combining the in-tank fuel pump and the fuel-level sender in a single drop-in unit. Agility supplies it as a kit with the necessary components so it goes in right out of the box.
Complete assembly: Integrates the fuel pump and level sender, with a strainer inlet and a Quick Connect outlet measuring 0.375 in outside diameter.
Rated specs: Operates on 12 V DC with a maximum flow rating of 70 U.S. gallons per hour and a maximum pressure of 90 PSI.
Built to spec: Engineered and built in a dust-free environment to OEM-level specifications.
Tested: Checked for pressure characteristics, flow rates, electrostatic discharge, and given 100% leak testing.
Signs the original pump/sender may need replacing include hard starting, stalling, loss of power under load, or an erratic fuel gauge. If a failed pump or sender is the cause, this assembly replaces it. Country of origin: Thailand.
What vehicle does this fuel pump and sender assembly fit?
It is a direct-fit replacement for the 1999-2002 Lincoln Navigator with the V8-5.4L engine. Check the Buyer's Guide tab to confirm the fit for your vehicle.
What are the flow and pressure ratings?
This assembly has a maximum flow rating of 70 U.S. gallons per hour and a maximum pressure of 90 PSI, and it operates on 12 V DC.
Does it include the fuel-level sender?
Yes. This is a combined fuel pump and sender assembly, supplied as a kit with the necessary components for a drop-in installation.
What inlet and outlet does it use?
It uses a strainer inlet and a Quick Connect outlet with a 0.375 in outside diameter.
What are signs my fuel pump or sender may need replacing?
Common signs include hard starting, stalling, loss of power under load, or an erratic fuel gauge. Diagnose the cause first, since these symptoms can have other sources.
Write a Review
AGILITY AUTO PARTS
Agility Autoparts Fuel Pump and Sender Assembly P/N:4010219
Keep fuel moving from tank to engine with the Agility Auto Parts Fuel Pump and Sender Assembly (MPN 4011119). It drops in as a direct-fit replacement for the 2001 Suzuki Grand Vitara [V6-2.7L] and...
Keep fuel moving from the tank to the engine with the Agility Auto Parts Fuel Pump and Sender Assembly (MPN 4011198). This in-tank module combines the electric fuel pump with the sending unit that...
Keep fuel flowing to the engine with the Agility Auto Parts Fuel Pump and Sender Assembly, MPN 4011102. This in-tank module pumps fuel toward the engine while its integrated sender reads the fuel...

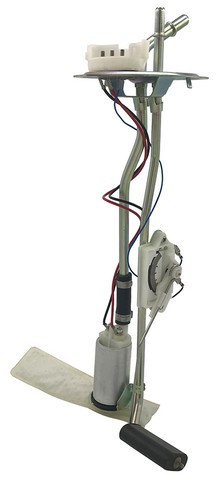

Keep fuel moving from tank to engine with the Agility Auto Parts Fuel Pump and Sender Assembly (MPN 4011096). It installs as a drop-in replacement for the 1986-1988 Ford Bronco II [V6-2.9L],...
