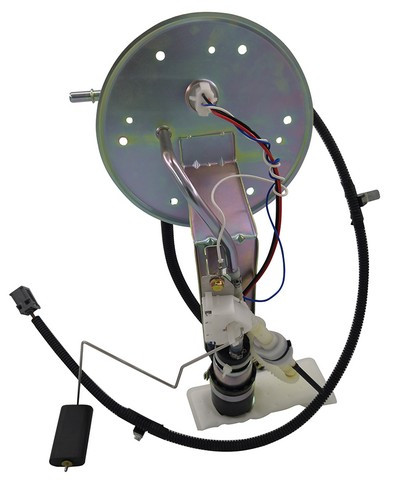

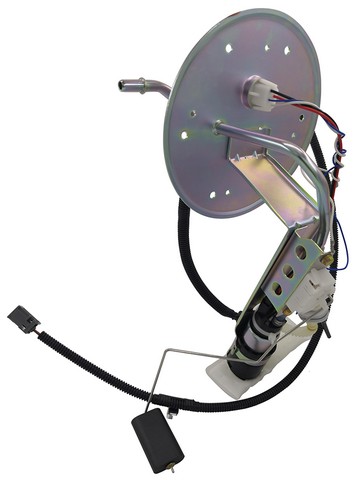

Agility 4010378 fuel pump and sender assembly for the 2003-2004 Ford Crown Victoria V8 4.6L and other vehicles pumps fuel from the tank to the engine and sends the tank level to the gauge.
- Built in a highly automated, dust-free environment
- Tested for pressure characteristics, flowrates and electrostatic discharge, plus 100% leak testing
- Supplied as a kit with all the necessary components included, ready to install out of the box
- Rated for a maximum flow of 75 U.S. gallons per hour and a maximum pressure of 100 psi
Quick facts
- Part: Agility 4010378 fuel pump and sender assembly
- Fits: 2003-2004 Ford Crown Victoria V8 4.6L and other vehicles
- Condition: New
A failing fuel pump and sender assembly can show up as hard starting, sputtering under load or a fuel gauge that reads wrong, though each of those can have other causes. Before replacing it, look over the fuel pump fuse for damage with the engine off; a shop can run any test that needs the engine running or a fuel line opened.
Fits
Agility 4010378 is listed for a wide range of Ford, Lincoln and Mercury models, led by the 2003-2004 Ford Crown Victoria V8 4.6L. The same assembly is the fuel pump for the 2003-2004 Lincoln Town Car V8 4.6L and the 2003-2004 Mercury Grand Marquis V8 4.6L. If your car is not named here, look it up by year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet outside diameter: 0.375 inch
- Voltage: 12 V DC
- Maximum flow rating: 75 U.S. gallons per hour
- Maximum pressure: 100 psi
Build and materials
- Inlet type: strainer
- Outlet type: quick connect
- Kit included
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump and sender assembly kit. This listing holds one assembly, and each vehicle takes one.
Interchange: 323-01678
E2336S · P76025M · P76025S · HP10233 · 3W1Z9H307AA · 3W1Z9H307AB · 4W1Z9H307AA · SP2336H · USEP2336S
This part cross-references / interchanges with the following part numbers:
E2336S, P76025M, P76025S, HP10233, 3W1Z9H307AA, 3W1Z9H307AB, 4W1Z9H307AA, 323-01678, SP2336H, USEP2336S
Frequently Asked Questions
Is Agility 4010378 the Grand Marquis fuel pump for 2003-2004 models with the V8 4.6L?
Yes. Agility 4010378 is listed for the 2003-2004 Mercury Grand Marquis V8 4.6L, and that car takes one assembly.
Is this a Crown Victoria fuel pump that fits 2003-2004 Ford models with the V8 4.6L?
Yes. Agility 4010378 is listed for the 2003-2004 Ford Crown Victoria V8 4.6L. If your car is not named on the page, check the "Vehicles it fits" section.
What comes with this fuel pump and sender assembly kit?
It is supplied as a kit with the components needed to install it. The listing is one assembly.
What flow and pressure ratings does this fuel pump and sender assembly have?
Agility 4010378 is rated for a maximum flow of 75 U.S. gallons per hour and a maximum pressure of 100 psi. It runs on 12 volts DC.
Does Agility 4010378 replace number 3W1Z9H307AA?
Yes. 3W1Z9H307AA is one of the numbers Agility 4010378 replaces, as shown on the Interchange line of this page.
