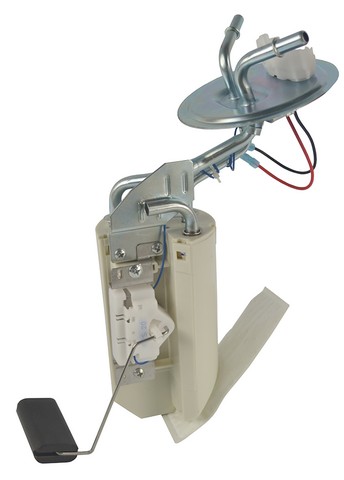

Agility 4011037 rear fuel pump hanger for the 1990-1991 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L and other vehicles holds the fuel pump in the tank and passes fuel on to the outlet line. It is a drop-in replacement built to OE-level specifications.
- Built in a highly automated, dust-free environment
- Tested for pressure characteristics, flow rates and electrostatic discharge, with 100% leak testing
- Strainer inlet and quick-connect outlet
- Rated for 26.375 U.S. gallons per hour and 116 psi on 12 volts DC
Quick facts
- Part: Agility 4011037 fuel pump hanger
- Also called: fuel pump hanger assembly
- Fits: the 1990-1991 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L and other vehicles
- Position: Rear
- Condition: New
Hard starting, stalling or a loss of power can point to a worn fuel pump hanger, but a clogged fuel filter, a bad fuel pump relay or a blown fuse can produce the same signs. Find the cause before you buy.
Fits
This hanger fits the 1990-1991 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L, the 1990-1991 Ford F-250 6-cylinder 4.9L, V8 5.0L, 5.8L or 7.5L and the 1990-1991 Ford F-350 6-cylinder 4.9L, V8 5.8L or 7.5L. Each truck takes one hanger in the rear position, and this listing is one hanger.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 1
- Outlet outside diameter: 0.375 in
- Voltage: 12 V DC
Build and materials
- Inlet type: Strainer
- Outlet type: Quick connect
- Maximum flow rating: 26.375 U.S. gallons per hour
- Maximum pressure: 116 psi
- Kit included
- Condition: New
- Country of origin: China
In the box
One fuel pump hanger with all the necessary components included.
Interchange: P77255S · HP10275 · FOTZ9H307B · SP33A1H · USEP12304M
This part cross-references / interchanges with the following part numbers:
P77255S, HP10275, FOTZ9H307B, SP33A1H, USEP12304M
Frequently Asked Questions
Will the Agility 4011037 fit a 1990-1991 Ford F-350 6-cylinder 4.9L, V8 5.8L or 7.5L?
Yes. The Agility 4011037 rear fuel pump hanger fits the 1990-1991 Ford F-350 6-cylinder 4.9L, V8 5.8L or 7.5L.
Does the Agility 4011037 fuel pump hanger assembly come with its components?
Yes. The Agility 4011037 comes with all the necessary components included, and this listing is one hanger for the rear.
What flow rate and pressure is this rear fuel pump hanger rated for?
The Agility 4011037 is rated for a maximum of 26.375 U.S. gallons per hour and 116 psi on 12 volts DC.
What kind of outlet and inlet does this fuel pump hanger have?
The outlet is a quick-connect type with a 0.375 inch outside diameter, and the inlet is a strainer.
How is this Agility fuel pump hanger tested?
Testing covers pressure characteristics, flow rates and electrostatic discharge, and every unit gets a 100% leak test.
