Heater Core for 1997-2001 Jeep Wrangler & More - Agility 9010362

$49.99

Vehicles this part fits

    Part number: 9010362
    UPC: 887548051998
    Condition: New
    Weight: 11.02 LBS
    Item Package Quantity: 1
    $49.99
    Adding to cart… The item has been added

    Have questions?

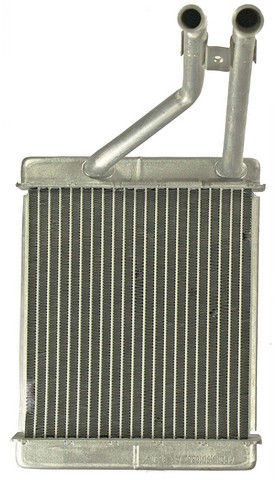

    Agility Autoparts HVAC Heater Core P/N:9010362
    Agility Autoparts HVAC Heater Core P/N:9010362
    $49.99
    $49.99

    Designed to carry hot engine coolant through the dash so the blower can warm the cabin, the Agility Autoparts Heater Core 9010362 is a heater core replacement for the 1997-2001 Jeep Wrangler, 1997-2001 Jeep Cherokee and 1997-2001 Jeep TJ, all engines. It is a direct-fit replacement for the listed applications, which use one heater core each.

    As coolant passes through the core's tubes, air from the blower moves across the fins and picks up heat for the cabin. Agility builds this unit with the following:

    • Aluminum construction: aluminum core and aluminum tanks.
    • Fin and tube design: enhanced design features, including the latest fin and tube technology, aimed at increased thermal performance and corrosion resistance.
    • Drop-in fit: certified to OE specifications or better and fitment checked in the vehicle's actual HVAC heater module, so it is ready to install right out of the box.
    • Quality control: produced under ISO TS16949 quality systems, with every heater 100% leak tested.

    Specifications: core 7.500 in wide x 7.750 in high x 1.000 in deep; inlet pipe diameter 0.625 in; outlet pipe diameter 0.750 in. Country of origin: China.

    Signs a heater core may need replacing include weak or no cabin heat, a sweet coolant smell inside the vehicle, fogged glass, damp carpet or unexplained coolant loss. Diagnose the cooling and HVAC system first; if the original core is the cause, this unit replaces it.

    Interchange: 18-11786
    8060 · 9245 · 4874045 · 98024 · 399233 · 93024 · 1811786

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    8060, 9245, 4874045, 98024, 399233, 18-11786, 93024

    Frequently Asked Questions

    Does this heater core fit the 1997-2001 Jeep TJ?

    Yes. Agility 9010362 is listed for the 1997-2001 Jeep TJ with all engines. The "Vehicles it fits" section shows every listed vehicle.

    What does an HVAC heater core do?

    It works like a small radiator behind the dash. Hot engine coolant flows through its tubes, and the blower pushes air across the fins to carry that heat into the cabin.

    What are the core and pipe dimensions?

    The core measures 7.500 in wide, 7.750 in high and 1.000 in deep. The inlet pipe diameter is 0.625 in and the outlet pipe diameter is 0.750 in.

    What signs suggest a Jeep heater core may need replacing?

    Common signs are weak or no cabin heat, a sweet coolant smell inside, fogged windows, damp carpet or coolant loss. Diagnose the system first, since other parts can cause these symptoms.

    How is this heater core built and tested?

    It has an aluminum core and aluminum tanks with a fin and tube design. Agility produces its heaters under ISO TS16949 quality systems and leak tests every unit.
