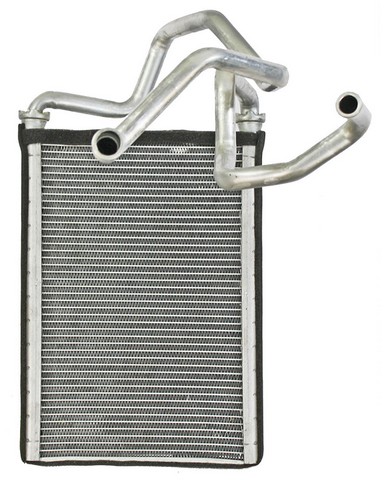

Keep warm air flowing into the cabin with the Agility Auto Parts Heater Core 9010493, a direct-fit Honda Odyssey heater core replacement for 2005-2010 models with all engines, and for the 2007-2009 Acura MDX with all engines. Hot engine coolant runs through the tubes of this front heater core, and the blower moves air across its fins to warm the passenger compartment.
Specifications: core width 11.000 in, core height 6.625 in, core depth 1.000 in; inlet pipe diameter 0.750 in and outlet pipe diameter 0.625 in. The listed applications use one heater core. Country of origin: China.
Signs an HVAC heater core may need replacing include weak or no cabin heat, a sweet coolant smell inside the vehicle, fogging windows, a damp passenger floor or unexplained coolant loss. Diagnose the cause before replacing, since thermostat, blend-door or low-coolant problems can produce similar symptoms.
Interchange: 18-12501
1812501 · 8553 · 79115SHJA01 · 99090 · 92265 · 99364
This part cross-references / interchanges with the following part numbers:
Will this work as a 2005 Honda Odyssey heater core?
Yes. It is listed as the front heater core for the 2005-2010 Honda Odyssey with all engines. Check the Buyer's Guide tab to confirm your vehicle.
Is this the right Acura MDX heater core for a 2007-2009 Acura MDX?
It is listed for the 2007-2009 Acura MDX with all engines, and the listed applications use one heater core.
What does a heater core do?
It works like a small radiator: hot engine coolant flows through its tubes, and the blower pushes air across its fins to heat the cabin and help defrost the windows.
What are the core dimensions and materials?
The core measures 11.000 in wide, 6.625 in high and 1.000 in deep, with a 0.750 in inlet pipe and a 0.625 in outlet pipe. The core and tanks are aluminum.
How is this heater core quality-checked?
Agility builds its heaters under ISO TS16949 quality systems and leak tests 100% of them. Its heaters are also fitment-checked in the actual vehicle's HVAC heater module.
