Radiator for 1994-1996 Chevrolet Impala & More - Agility 8011516

Be the first to review this product

$248.99

MPN: 8011516

UPC: 887548032553

Item Package Quantity: 1

Current Stock:

Have questions?

Ask an Expert

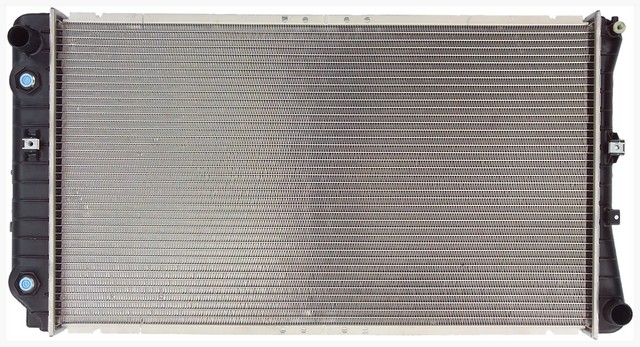

Agility Autoparts Radiator P/N:8011516

$248.99

Description

Keep coolant temperatures under control with the Agility Auto Parts Radiator 8011516, a direct-fit replacement for the 1994-1996 Buick Commercial Chassis and Roadmaster, the 1994-1995 Cadillac Commercial Chassis and Fleetwood, and the 1994-1996 Chevrolet Caprice and Impala. It covers the V8-5.7L across these applications, plus the V8-4.3L Chevrolet Caprice — see the Buyer's Guide tab for the full year-and-engine breakdown. A radiator transfers heat from the circulating engine coolant to the passing airflow; signs it may need replacing include coolant leaks, overheating, and internal or external corrosion.

Construction: aluminum core with plastic tanks, built as a single core row.
Core dimensions: 30.500 in wide × 17.250 in high × 1.250 in thick, with 1.3125 in inlet and outlet connections.
Integrated transmission oil cooler: 11.500 in cooler length built into the assembly.
Quality: engineered and manufactured under the ISO TS16949 quality system and 100% leak tested; certified to meet or exceed the manufacturer's specifications and ready to install out of the box.

Country of origin: China.

Interchange: 41-1516 · 4-0243
411516 · 40243 · 20803 · 20830 · 21429 · 1516 · CRS1516 · RA1137 · 20738 · 52467761 · 52470704 · 52471414 · 52473177 · BK9494 · CU1516 · 432366 · 438034

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

20803, 20830, 21429, 1516, CRS1516, RA1137, 20738, 52467761, 52470704, 52471414, 52473177, BK9494, 41-1516, CU1516, 4-0243, 432366, 438034

Frequently Asked Questions

What vehicles does the Agility 8011516 radiator fit?

It fits the 1994-1996 Buick Commercial Chassis and Roadmaster, 1994-1995 Cadillac Commercial Chassis and Fleetwood, and 1994-1996 Chevrolet Caprice and Impala. Check the Buyer's Guide tab for exact year and engine details.

What is this radiator made of?

It uses an aluminum core with plastic tanks and is built as a single core row.

Does it include a transmission oil cooler?

Yes. The assembly has an integrated transmission oil cooler with an 11.500 in cooler length.

What are the core dimensions and port sizes?

The core measures 30.500 in wide, 17.250 in high, and 1.250 in thick, with 1.3125 in inlet and outlet diameters.

Is the radiator tested before shipping?

Every unit is engineered and manufactured under the ISO TS16949 quality system and is 100% leak tested, certified to meet or exceed the manufacturer's specifications and ready to install out of the box.
