Radiator for 2009-2020 Chevrolet Express 2500 & More - Agility 8013476

$282.99

Vehicles this part fits

    Part number: 8013476
    UPC: 887548146250
    Condition: New
    Weight: 49.97 LBS
    Item Package Quantity: 1
    $282.99
    Adding to cart… The item has been added

    Have questions?

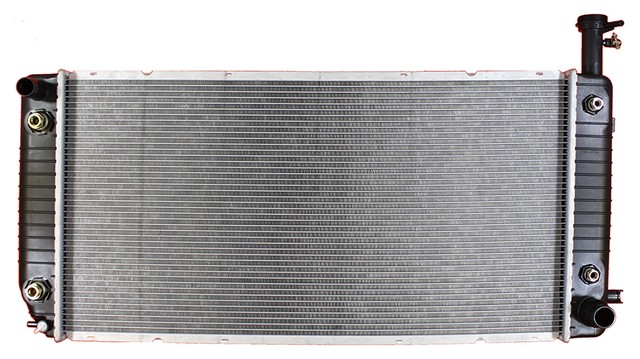

    Agility Autoparts Radiator P/N:8013476
    Agility Autoparts Radiator P/N:8013476
    $282.99
    $282.99

    Agility 8013476 radiator for the 2009-2017 Chevrolet Express 2500 V8 4.8L, the 2009-2020 Express 2500 V8 6.0L and other vehicles moves engine heat out of the coolant and into the air passing through the core. It is certified to meet or exceed the manufacturer's specifications and is ready to install out of the box.

    • Plastic tank and aluminum construction
    • Core measures 34 in wide, 17.25 in high and 1 in thick
    • Every radiator is 100% leak tested
    • Engine oil cooler and transmission oil cooler, 11.5 in long each

    Quick facts

    • Part: Agility 8013476 radiator
    • Fits: the 2009-2017 Chevrolet Express 2500 V8 4.8L, the 2009-2020 Express 2500 V8 6.0L and other vehicles
    • Condition: New

    A coolant leak at the tank or core, or an engine that runs hot, can mean the radiator is worn, though a failed thermostat or water pump can be behind the same signs. If the radiator is the cause, this one replaces it.

    Fits

    This radiator is a direct-fit replacement for the 2009-2017 Chevrolet Express 3500 V8 4.8L, the 2009-2020 Express 3500 V8 6.0L, the 2009-2017 GMC Savana 2500 V8 4.8L and the 2009-2020 Savana 2500 V8 6.0L. Open the "Vehicles it fits" section to find your exact model and engine.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 17.25 in
    • Core width: 34 in
    • Core thickness: 1 in
    • Core rows: 1
    • Inlet diameter: 1.3125 in
    • Outlet diameter: 1.5625 in
    • Engine oil cooler length: 11.5 in
    • Transmission oil cooler length: 11.5 in

    Build and materials

    • Construction: plastic tank, aluminum
    • Condition: New
    • Country of origin: Cambodia

    In the box

    One radiator. The vehicle takes one.

    Interchange: 41-13476
    21738 · 2817 · 13476 · 20778475 · 20820962 · 22795300 · 23193133 · 23378647 · 25912003 · 84462085 · CR13476 · CU13476

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    21738, 2817, 13476, 20778475, 20820962, 22795300, 23193133, 23378647, 25912003, 84462085, CR13476, 41-13476, CU13476

    Frequently Asked Questions

    Does this Chevy Express 2500 radiator fit the 2009-2020 Express 2500 V8 6.0L?

    Yes. Agility 8013476 fits the 2009-2020 Chevrolet Express 2500 V8 6.0L and the 2009-2017 Express 2500 V8 4.8L. Open the "Vehicles it fits" section for other models.

    What size is the core on the Agility 8013476 radiator?

    The core is 34 in wide, 17.25 in high and 1 in thick, with one core row.

    What are the inlet and outlet diameters on this radiator?

    The inlet diameter is 1.3125 in and the outlet diameter is 1.5625 in.

    Is the Agility 8013476 radiator leak tested?

    Yes. Every Agility radiator is 100% leak tested and is ready to install out of the box.

    Will Agility 8013476 replace the 23193133 radiator?

    Yes. 23193133 is one of the numbers this radiator replaces; the others are on the Interchange line.
