Radiator for 2017-2022 Ford F-250 Super Duty & More - Agility 8013717

$377.99

Vehicles this part fits

    Part number: 8013717
    UPC: 887548227799
    Condition: New
    Weight: 10.50 LBS
    Item Package Quantity: 1
    $377.99
    Adding to cart… The item has been added

    Have questions?

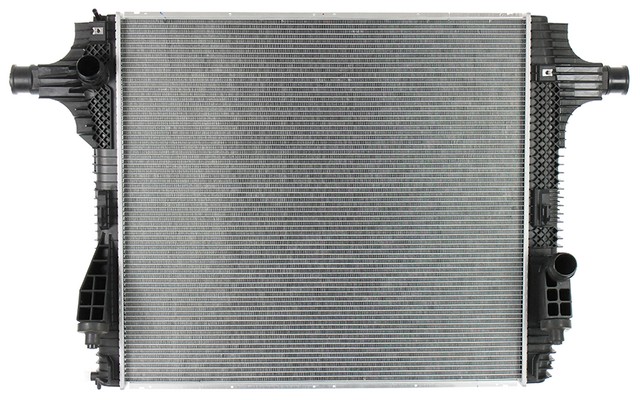

    Agility Autoparts Radiator P/N:8013717
    Agility Autoparts Radiator P/N:8013717
    $377.99
    $377.99

    Agility 8013717 radiator for the 2017-2022 Ford F-250 Super Duty V8 6.2L and other vehicles moves heat out of the engine coolant. It is certified to meet or exceed the manufacturer's specifications.

    • Every radiator is 100% leak tested
    • Ready to install out of the box
    • Plastic tank aluminum construction with a single-row core
    • Transmission oil cooler length of 12.000 in

    Quick facts

    • Part: Agility 8013717 radiator
    • Fits: 2017-2022 Ford F-250 Super Duty V8 6.2L and other vehicles
    • Condition: New

    Coolant loss, wet stains on the tanks or a temperature gauge that climbs can mean the radiator is worn, though the thermostat or the water pump can be behind them too.

    Fits

    The 2017-2022 Ford F-250 Super Duty V8 6.2L, the 2017-2022 Ford F-350 Super Duty V8 6.2L and the 2017-2019 Ford F-450 Super Duty V10 6.8L take this radiator, and so do other vehicles.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 27.625 in
    • Core width: 30.375 in
    • Core thickness: 1.000 in
    • Core rows: 1
    • Inlet diameter: 1.875 in
    • Outlet diameter: 1.875 in
    • Transmission oil cooler length: 12.000 in

    Build and materials

    • Construction: plastic tank aluminum
    • Condition: New
    • Country of origin: China

    In the box

    One radiator. This listing holds one, and the vehicle takes one.

    Interchange: 41-13717 · 41-13849
    13717 · 13849 · HC3Z8005C · HC3Z8005D · PL323461 · CU13717

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    13717, 13849, HC3Z8005C, HC3Z8005D, PL323461, 41-13717, 41-13849, CU13717

    Frequently Asked Questions

    Does this Ford F-250 Super Duty radiator fit the 2017-2022 model with the V8 6.2L?

    Yes, Agility 8013717 fits the 2017-2022 Ford F-250 Super Duty V8 6.2L. If yours is a different vehicle, find it in the "Vehicles it fits" section.

    Is a Ford F-450 Super Duty radiator like this one right for the 2017-2019 model with the V10 6.8L?

    Yes, Agility 8013717 fits the 2017-2019 Ford F-450 Super Duty V10 6.8L. This listing is one radiator, and that application takes one.

    What are the inlet and outlet sizes on Agility 8013717?

    Both the inlet and the outlet measure 1.875 in. The core is 30.375 in wide, 27.625 in high and 1.000 in thick.

    What should I look for on a radiator that may be leaking coolant?

    With the engine off and cool, look over the tanks and core for cracks, coolant stains or wet spots. Coolant loss or a gauge that climbs in normal driving are other signs.

    Can I use Agility 8013717 in place of HC3Z8005C?

    Yes, HC3Z8005C is one of the numbers Agility 8013717 replaces. The Interchange line lists the other numbers this radiator covers.
