Rear Air Shock Absorber for 1997-2002 Cadillac Eldorado & More - Arnott AS-2177

$575.99

Vehicles this part fits

    Part number: AS-2177
    UPC: 814989000889
    Condition: New
    Weight: 19.00 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $575.99
    Adding to cart… The item has been added

    Have questions?

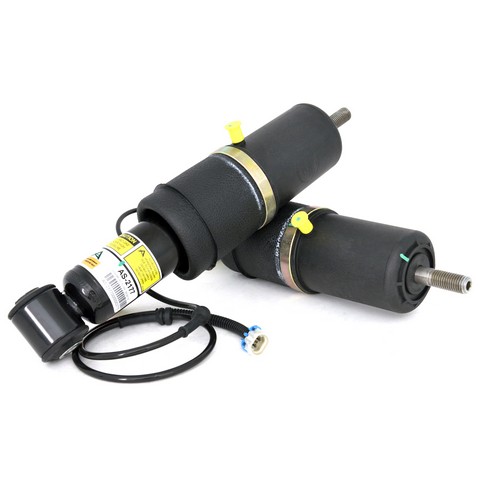

    Arnott Industries Air Shock Absorber P/N:AS-2177
    Arnott Industries Air Shock Absorber P/N:AS-2177
    $575.99
    $575.99

    Arnott Industries AS-2177 rear air shock absorber for the 1997-2002 Cadillac Eldorado and other vehicles is an air-assisted shock that supports the load on the rear axle. It is a non-electronic, passive replacement sold as a kit with both rear shocks.

    • Air bladder design with air-adjustable load support
    • Air suspension load leveling remains functional
    • Solenoid kit included to bypass electronic ride
    • Twin-tube body with a hydraulic internal damper
    • Progressive spring rate, with the spring included

    Quick facts

    • Part: Arnott Industries AS-2177 air shock absorber
    • Fits: 1997-2002 Cadillac Eldorado and other vehicles
    • Position: Rear
    • Condition: New

    A rear end that sags, bounces or sits low under load, or a shock that leaks, can mean worn shocks. A leaking air line, the leveling compressor or tired rear springs can be behind those signs too, so find out which one it is before you buy.

    Fits

    This kit fits the 1997-2002 Cadillac Eldorado, the 1997-1999 Cadillac DeVille and the 1997 Cadillac Seville. The 1997-2002 Cadillac Eldorado takes one kit, which already holds both sides of the rear axle, and the maker recommends replacing the pair together.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 1 kit (both rear shocks)
    • Upper mount type: Stud
    • Lower mount type: Loop (eyelet) bearing
    • Body end measuring point: Center eye
    • Rod end measuring point: Shoulder of stud

    Build and materials

    • Type: Air adjustable, air bladder, spring assisted
    • Internal construction: Twin tube, hydraulic damper
    • Spring rate: Progressive
    • Grade: Standard replacement
    • Condition: New
    • Country of origin: United States

    In the box

    Both rear air shocks with their springs, spring isolators, a lower mounting isolator and a solenoid kit to bypass electronic ride. Mounting hardware, the spring seat and the upper mounting isolator are not included, so plan on new mounting hardware.

    Installation notes

    • The air shocks fit directly to the vehicle with no modifications.
    • Passive, non-electronic shocks; the solenoid kit handles the electronic ride bypass.

    Interchange: 22064727

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    22064727

    Frequently Asked Questions

    Does the Arnott Industries AS-2177 fit the 1997-1999 Cadillac DeVille?

    Yes, the Arnott Industries AS-2177 rear air shock kit fits the 1997-1999 Cadillac DeVille.

    Do these air shocks come with springs and the bypass solenoid kit?

    Yes. The kit has both rear shocks with springs, spring isolators, a lower mounting isolator and the solenoid kit. Mounting hardware, spring seat and upper isolator are not included.

    Is the AS-2177 a twin-tube air shock?

    Yes, the Arnott Industries AS-2177 has a twin-tube body with a hydraulic internal damper, a progressive spring rate and an air bladder for adjustable load support.

    Will these rear air shocks keep my air leveling system working?

    Yes, air suspension load leveling remains functional. These are passive, non-electronic shocks, and the included solenoid kit bypasses electronic ride.

    How can I tell if my rear air shocks are worn?

    Look with the engine off for oil or air leaks and cracked or damaged parts at the shocks. In driving, a rear end that sags, bounces or sits low under load can mean worn shocks.
