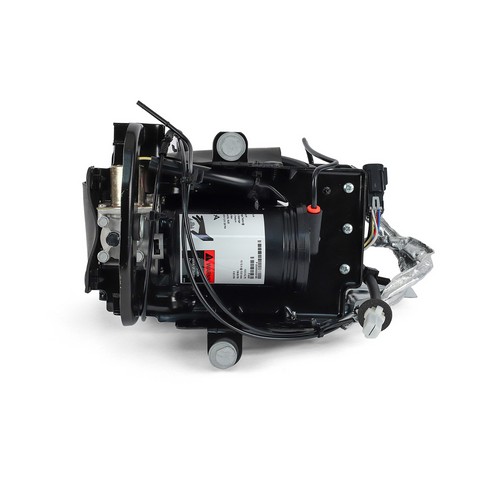

Arnott Industries P-3243 air suspension compressor for the 2013-2019 Cadillac XTS supplies compressed air to the air suspension system. Built to original equipment specifications, it is a direct replacement for the original GM compressor.
- Electro-plated finish to prevent corrosion
- Heavy-duty motor built for long service life
- Thermal overload protection built into the compressor
- Compact, lightweight compressor
Quick facts
- Part: Arnott Industries P-3243 air suspension compressor
- Fits: 2013-2019 Cadillac XTS
- Condition: New
A worn compressor can show up as a car that sits low after parking, a compressor that runs for long stretches, or a suspension warning message. Before you replace this compressor, have a shop rule out air leaks at the springs, lines and fittings, since lost air can also leave the car sitting low.
Fits
It fits the 2013-2019 Cadillac XTS, and each car takes one compressor.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 3
- Voltage: 12 V DC
- Amperage rating: 13.1 A
- Maximum pressure: 180 psi
- Connector gender: female
Build and materials
- Grade: standard replacement
- Finish: electro-plated
- Thermal overload protection: yes
- Condition: New
- Country of origin: China
In the box
One air suspension compressor assembly kit with an air dryer and relay. The valve block, mounting hardware and protective cover are not included, so plan on new mounting hardware.
Installation notes
- Connects directly into the vehicle's air lines and electrical connector.
- Set up for plug and play installation.
Interchange: 22936012 · 22983463 · 23129283 · 23168660 · 23353754 · 23446561 · 23468864 · 84160004 · 84219810 · 84355910
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
22936012, 22983463, 23129283, 23168660, 23353754, 23446561, 23468864, 84160004, 84219810, 84355910, P3243
Frequently Asked Questions
Does the Arnott Industries P-3243 fit the 2013-2019 Cadillac XTS?
Yes. The Arnott Industries P-3243 air suspension compressor fits the 2013-2019 Cadillac XTS, and each car takes one.
Does the Arnott P-3243 come with a valve block or mounting hardware?
No. The Arnott P-3243 kit has the compressor assembly with an air dryer and relay. The valve block, mounting hardware and protective cover are not included.
What voltage and pressure rating does this air suspension compressor have?
This compressor runs on 12 volts DC, is rated at 13.1 amps and has a maximum pressure of 180 psi.
Does the Arnott P-3243 have a corrosion-resistant finish and thermal overload protection?
Yes. It has an electro-plated finish to prevent corrosion, plus a heavy-duty motor with thermal overload protection.
Is 23468864 an interchange number for the Arnott P-3243?
Yes. 23468864 is on the Interchange line for this compressor, so it is one of the other numbers this Arnott P-3243 replaces.
