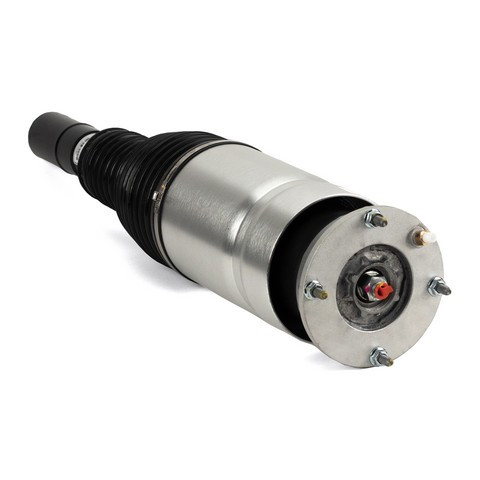

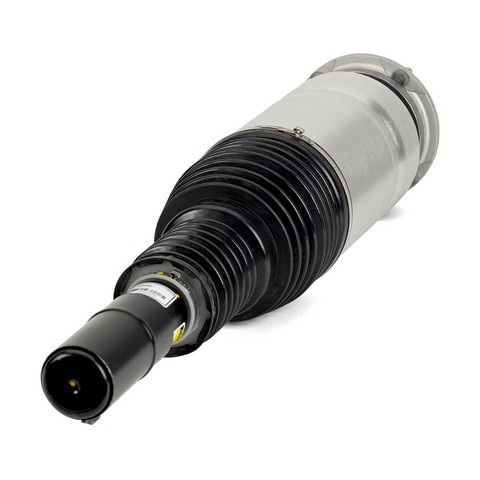

Arnott Industries AS-3067 front right air suspension strut for the 2013-2022 Land Rover Range Rover supports the corner on an air bladder and damps wheel movement. This strut is remanufactured for the L405 chassis: each one is tested, disassembled, cleaned, recharged, painted and rebuilt from the ground up.
- Multi-ply rubber air bladder made by Continental ContiTech
- Dust boots, protective aluminum can, heavy-duty crimping rings, O-rings and an air fitting
- Hydraulic internal damper that is gas charged, with a progressive spring rate
- Designed to work with the vehicle's auto leveling suspension controls
Quick facts
- Part: Arnott Industries AS-3067 air suspension strut
- Fits: 2013-2022 Land Rover Range Rover
- Position: Front right
- Condition: Remanufactured
A corner that sits low, a cracked or rubbed air bladder or boot, or oil on the damper body can mean the strut is worn. A low corner can also come from a leaking air line or fitting, so look the parts over with the engine off to find the cause before replacing the strut. This listing is one strut for the front right wheel; the front left is ordered separately, and replacing in pairs gives the best results.
Fits
This front right strut is a direct-fit replacement for the 2013-2022 Land Rover Range Rover.
Specifications
Fit and size
- Position: Front right
- Quantity: 1 for this side
- Upper mount type: Stud
- Lower mount type: Base cup
- Body end measuring point: Center eye
- Rod end measuring point: Shoulder of stud
Build and materials
- Condition: Remanufactured
- Internal damper: Hydraulic, gas charged
- Spring rate: Progressive
- Air adjustable: Yes
- Shock spring assisted: Yes
- Country of origin: United States
In the box
One front right air suspension strut with mounting hardware, spring isolators, an upper mounting isolator and a boot. The spring seat, bearing plate and lower mounting isolator are not included.
Installation notes
- Comes pre-assembled.
- Detailed installation instructions are available.
Interchange: LR038801 · LR038803 · LR052774 · LR057251 · LR060135 · LR072447 · LR087081
This part cross-references / interchanges with the following part numbers:
LR038801, LR038803, LR052774, LR057251, LR060135, LR072447, LR087081
Frequently Asked Questions
Is the Arnott Industries AS-3067 the right strut for the front right of a 2013-2022 Land Rover Range Rover?
Yes. Arnott Industries AS-3067 is the front right air suspension strut for the 2013-2022 Land Rover Range Rover. The front left side is a separate part.
Does the AS-3067 air strut come with mounting hardware and isolators?
Yes. Arnott Industries AS-3067 includes mounting hardware, spring isolators and an upper mounting isolator. The spring seat, bearing plate and lower mounting isolator are not included.
Where is this Arnott air suspension strut remanufactured, and what air bladder does it use?
This strut is remanufactured and tested in the USA. It uses a multi-ply rubber air bladder made by Continental ContiTech.
How can I tell if a front air suspension strut is leaking or failing?
A corner that sits low, cracks or rubbing on the bladder or boot, or oil on the damper body can point to a worn strut. Look with the engine off; a shop can test for air leaks.
Does this air suspension strut arrive pre-assembled?
Yes. This strut comes pre-assembled, and detailed installation instructions are available.
