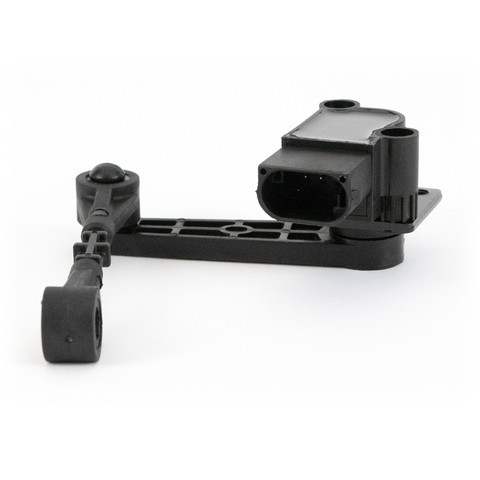

Arnott Industries RH-3875 front right ride height sensor for the 2005-2009 Land Rover LR3 measures the distance between the road and the chassis. Also called a suspension ride height sensor, it helps keep suspension calibration accurate.
- Measures the varying distance between the road and the chassis to level the vehicle
- Sends the reading to the ECU, which signals the air suspension compressor to add or release air in the air struts
- Lab tested up to 1 million cycles
- Female oval connector with male pin terminals
Quick facts
- Part: Arnott Industries RH-3875 ride height sensor
- Also called: suspension ride height sensor
- Fits: 2005-2009 Land Rover LR3
- Position: Front right
- Condition: New
A sagging or uneven stance or an air suspension warning light can mean the sensor is worn, though the air suspension compressor or an air strut can be behind them too. Road debris, accidents, water and salt can damage a sensor. This listing is one sensor for the front right.
Fits
This front right sensor is a direct-fit replacement for the 2005-2009 Land Rover LR3.
Specifications
Fit and size
- Position: Front right
- Quantity at this position: 1
- Connector shape: Oval
- Connector gender: Female
- Terminals: 3, male pin
Build and materials
- Grade: Standard replacement
- Condition: New
- Country of origin: China
In the box
One ride height sensor. The front right position takes one, and the opposite side is a separate part.
Installation notes
- Plug-and-play integration for easy installation.
Interchange: LR019136 · LR020157 · RQH500061
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
LR019136, LR020157, RQH500061
Frequently Asked Questions
Is this height sensor for the 2005-2009 Land Rover LR3 a direct fit?
Yes. Arnott Industries RH-3875 is a direct-fit replacement for the 2005-2009 Land Rover LR3 and is made for the front right position.

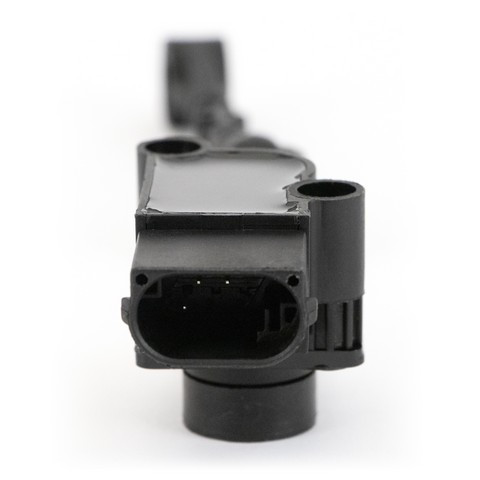

What kind of connector does the RH-3875 front right sensor have?
It has a black, oval, female connector with three male pin terminals, set up for plug-and-play connection.
What can a worn front right ride height sensor look like?
An uneven or sagging stance or an air suspension warning light can be signs of a worn sensor. A shop can test it, since road debris, water and salt are known to damage these sensors.
Is the Arnott RH-3875 interchangeable with part number LR019136?
Yes. LR019136 is one of the numbers this Arnott Industries RH-3875 sensor replaces.
How does this ride height sensor tell the air suspension what to do?
The sensor reads the distance between the road and the chassis and passes it to the ECU. The ECU then tells the air suspension compressor to raise or lower the air in the struts.
