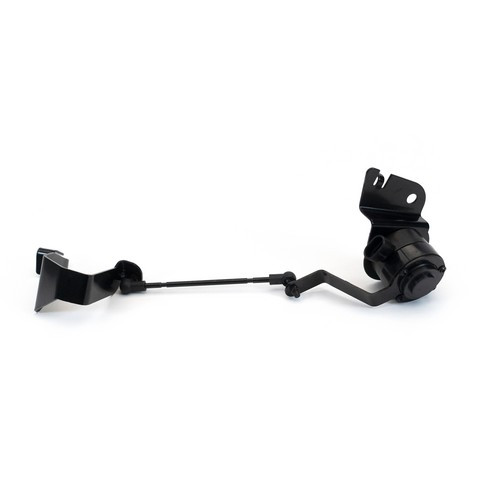

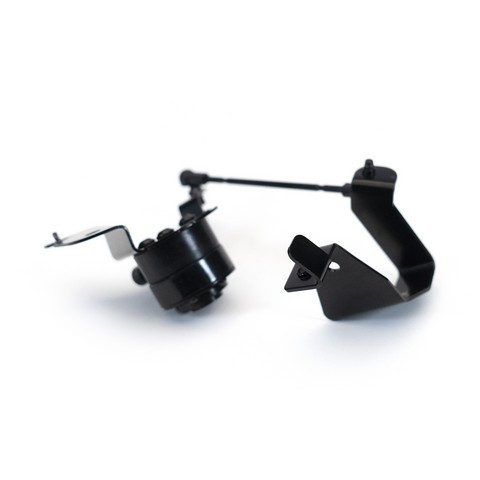

Arnott Industries RH-5077 front right headlight level sensor for the 2000-2006 Chevrolet Suburban 2500 and other vehicles measures the distance between the road and the chassis so the ECU can level the vehicle. Using that reading, the ECU signals the air suspension compressor to add or remove air in the air struts.
- Precision ride height sensing for accurate suspension calibration
- Plug-and-play integration for easy installation
- Lab tested up to 1 million cycles
Quick facts
- Part: Arnott Industries RH-5077 headlight level sensor
- Also called: suspension ride height sensor
- Fits: 2000-2006 Chevrolet Suburban 2500 and other vehicles
- Position: Front right
- Condition: New
Ride height sensors can wear out, and road debris, accidents, water and salt can damage them. An uneven stance or an air suspension warning can mean the sensor is worn, though other faults in the air suspension can show up the same way. With the engine off, look over the sensor and its connector for cracks, corrosion or salt buildup before you replace it.
Fits
This direct-fit replacement suits the 2000-2006 Chevrolet Suburban 2500 and the 2000-2004 GMC Yukon XL 2500, and each takes one at the front right. This listing is one sensor; the front left is a separate part, and fitting one on each side gives the best results.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Connector quantity: 3
- Terminal quantity: 3
Build and materials
- Connector: female, oval shape
- Terminals: male pins
- Grade: Standard replacement
- Condition: New
- Country of origin: China
Interchange: 15128633 · 15267456 · 22175473
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
15128633, 15267456, 22175473
Frequently Asked Questions
Is the Arnott RH-5077 sensor right for the 2000-2004 GMC Yukon XL 2500?
Yes. Arnott Industries RH-5077 is a front right headlight level sensor for the 2000-2004 GMC Yukon XL 2500, and that position takes one.
What kind of connector does the RH-5077 ride height sensor have?
The connector is female and oval, with male pin terminals. The catalog lists a terminal quantity of 3.
Which side does this headlight level sensor go on?
This sensor is for the front right position. The front left takes its own separate sensor, so order that one separately.
What signs can a worn ride height sensor give?
An uneven ride height or an air suspension warning can mean the sensor is worn, among other causes. A shop can test the sensor's signal.
How many cycles was the Arnott RH-5077 sensor tested for?
Arnott Industries RH-5077 is lab tested up to 1 million cycles.
