Power Steering Pump for 2004-2006 Scion xA & More - Atlantic Automotive Engineering 5543N

$250.99

Vehicles this part fits

    Part number: 5543N
    UPC: 888544108068
    Condition: New
    Weight: 5.06 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $250.99
    Adding to cart… The item has been added

    Have questions?

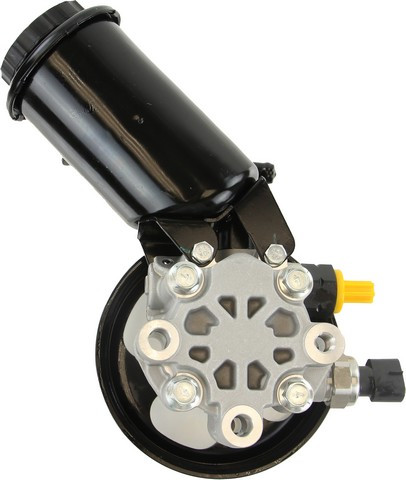

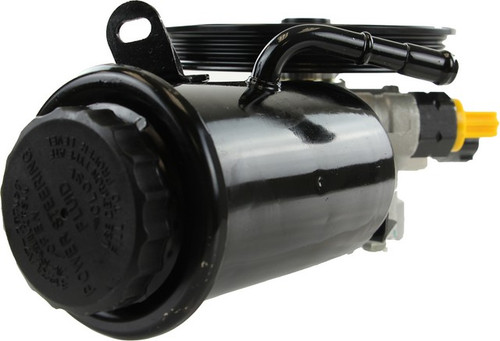

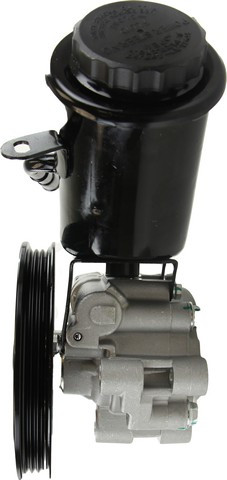

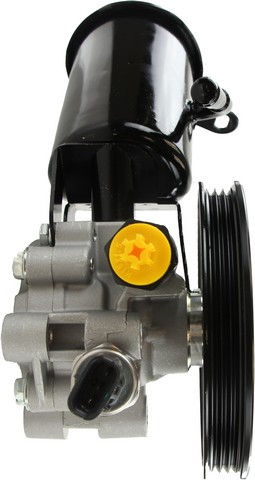

    Atlantic Automotive Engineering Power Steering Pump P/N:5543N
    Atlantic Automotive Engineering Power Steering Pump P/N:5543N
    $250.99
    $250.99

    Atlantic Automotive Engineering 5543N power steering pump for the 2004-2006 Scion xA and other vehicles supplies the hydraulic pressure that gives the steering its power assist. This new hydraulic pump is a direct replacement for a failed original unit.

    • Each unit is 100% hydraulically tested under load in the USA
    • Pulley, reservoir and reservoir cap included
    • Aluminum housing with a press-on pulley attachment
    • Clamp-on inlet and threaded outlet

    Quick facts

    • Part: Atlantic Automotive Engineering 5543N power steering pump
    • Fits: 2004-2006 Scion xA and other vehicles
    • Material: Aluminum housing
    • Condition: New

    A whine or groan when you turn, steering that feels heavy, or fluid around the pump can mean the pump is wearing out. Before you replace it, rule out low fluid or a leaking hose or fitting as the source of those signs.

    Fits

    It fits the 2004-2006 Scion xA, the 2004-2006 Scion xB and the 2000-2005 Toyota Echo. Every one of them takes a single pump.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Inlet diameter: 10 mm
    • Outlet diameter: 16 mm
    • Inlet attachment: clamp-on
    • Outlet attachment: threaded
    • Hose port type: hose barb

    Build and materials

    • Type: hydraulic
    • Housing material: aluminum
    • Pulley attachment: press-on
    • Grade: standard replacement
    • Condition: new
    • Country of origin: China

    In the box

    One power steering pump with its pulley, reservoir and reservoir cap. Mounting hardware and a filter are not included, so plan on new bolts, since the old ones may not be reusable.

    Installation notes

    • Flush and fill the steering system with an OE approved power steering fluid.
    • Replacing the steering fluid reservoir along with the pump is highly recommended, because a clogged reservoir can starve the replacement pump.

    Interchange: 4431052050 · 4431052090 · 4431052020

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4431052050, 4431052090, 4431052020

    Frequently Asked Questions

    Is this xB power steering pump right for the 2004-2006 Scion xB?

    Yes. Atlantic Automotive Engineering 5543N fits the 2004-2006 Scion xB, and that car takes one pump.

    Does this power steering pump come with the pulley and reservoir?

    Yes. This Atlantic Automotive Engineering 5543N comes with its pulley, reservoir and reservoir cap. Mounting hardware and a filter are not included.

    What size are the inlet and outlet fittings on this power steering pump?

    The inlet is 10 mm with a clamp-on attachment. The outlet is 16 mm with a threaded attachment.

    Is the Atlantic Automotive Engineering power steering pump tested under load?

    Yes. Each 5543N is 100% hydraulically tested under load in the USA.

    Should I flush the system when I install this power steering pump?

    Yes. Flushing and filling the system with an OE approved power steering fluid is advised, and replacing the steering fluid reservoir along with the pump is highly recommended.
