Power Steering Pump for 2000-2006 Toyota Tundra & More - Atlantic Automotive Engineering 5594N

$255.99

Vehicles this part fits

    Part number: 5594N
    UPC: 888544081156
    Condition: New
    Weight: 7.00 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $255.99
    Adding to cart… The item has been added

    Have questions?

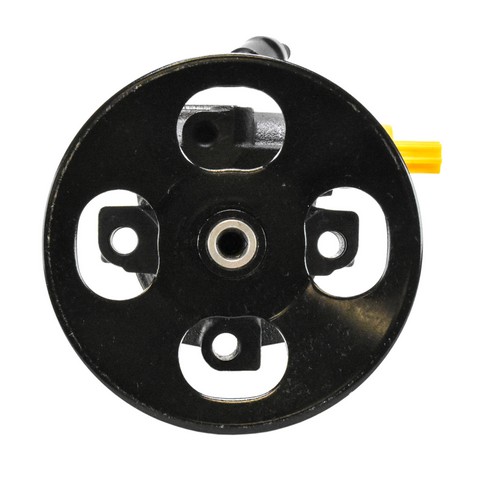

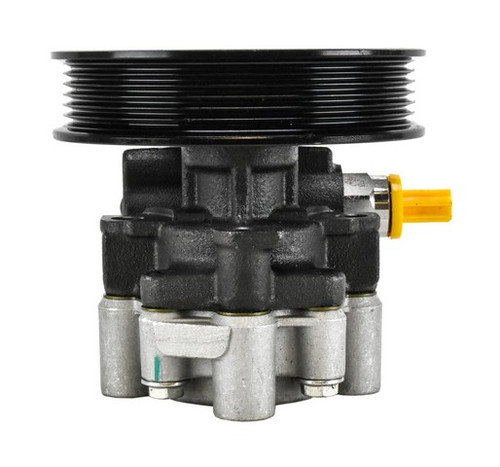

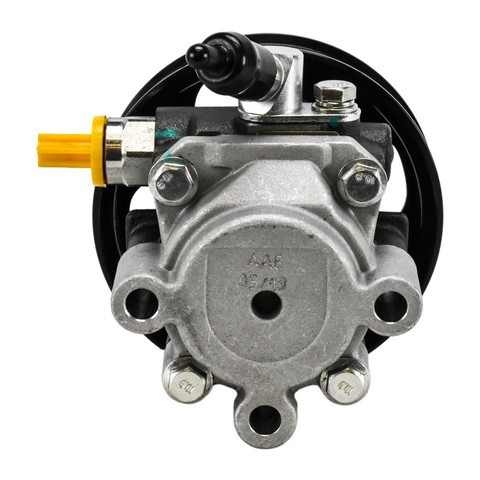

    Atlantic Automotive Engineering Power Steering Pump P/N:5594N
    Atlantic Automotive Engineering Power Steering Pump P/N:5594N
    $255.99
    $255.99

    Atlantic Automotive Engineering 5594N power steering pump for the 2000-2006 Toyota Tundra and other vehicles supplies hydraulic pressure that helps the steering turn.

    • Aluminum housing with a press-on pulley included
    • Upgraded shaft is heat treated to prevent premature failure
    • Each unit is 100% hydraulically tested under load in the USA
    • Return pipe adapter included

    Quick facts

    • Part: Atlantic Automotive Engineering 5594N power steering pump
    • Fits: 2000-2006 Toyota Tundra and other vehicles
    • Material: Aluminum housing
    • Condition: New

    A whine or groan when turning, heavy steering or fluid seeping around the pump can mean it is wearing out. A leaking hose, a clogged reservoir or low fluid can be behind these signs too, so find the cause before buying a pump.

    Fits

    It is a power steering pump for the 2000-2006 Toyota Tundra and the 2001-2007 Toyota Sequoia. Both take one pump.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Inlet diameter: 16.0 mm
    • Outlet diameter: 16.0 mm
    • Inlet attachment: clamp-on
    • Outlet attachment: threaded
    • Hose port type: hose barb
    • Pulley attachment: press-on

    Build and materials

    • Type: hydraulic
    • Housing material: aluminum
    • Remote reservoir: yes, reservoir not included
    • Condition: new
    • Country of origin: China

    In the box

    One power steering pump with its pulley and a return pipe adapter. The reservoir, reservoir cap, filter and mounting hardware are not included, so plan on new bolts.

    Installation notes

    • Replacing the steering fluid reservoir along with the pump is highly recommended, because a clogged reservoir can starve the replacement pump.
    • Flush and fill the steering system with an OE approved power steering fluid.

    Interchange: 443100C030 · 443200C020 · 443200C030

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    443100C030, 443200C020, 443200C030

    Frequently Asked Questions

    Is this a power steering pump replacement for the 2000-2006 Toyota Tundra?

    Yes. Atlantic Automotive Engineering 5594N is a direct replacement for failed original units on the 2000-2006 Toyota Tundra.

    Is 5594N the right power steering pump for the 2001-2007 Toyota Sequoia?

    Yes. Atlantic Automotive Engineering 5594N fits the 2001-2007 Toyota Sequoia, and one pump is needed.

    Does the 5594N pump come with a pulley and reservoir?

    This pump includes the pulley and a return pipe adapter. The reservoir, reservoir cap, filter and mounting hardware are not included.

    What are the inlet and outlet sizes on the 5594N power steering pump?

    Atlantic Automotive Engineering 5594N has a 16.0 mm clamp-on inlet and a 16.0 mm threaded outlet, with a hose barb port type.

    Should the reservoir be replaced when installing a new power steering pump?

    Yes, changing the reservoir along with the pump is strongly advised, since a clogged one can starve the new pump. Also flush the system and refill it with an OE approved power steering fluid.
