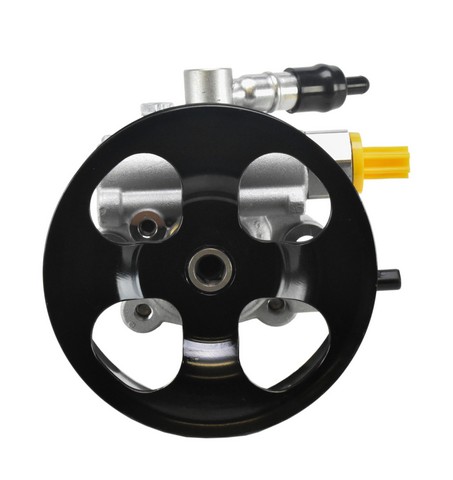

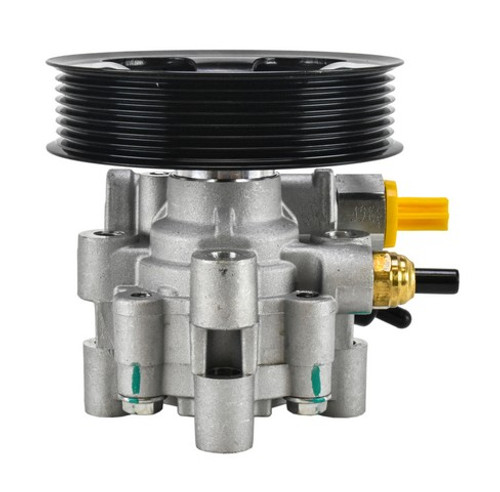

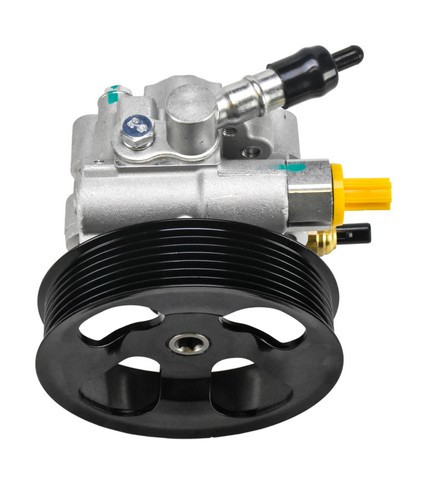

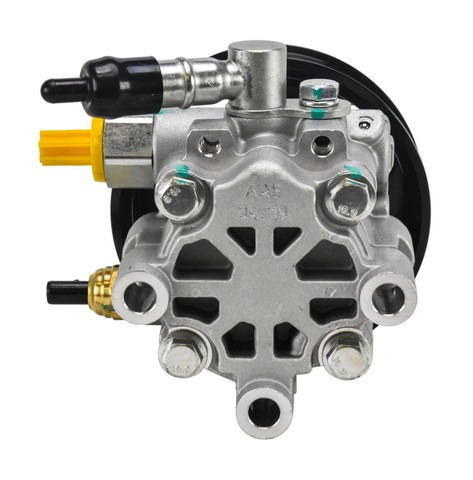

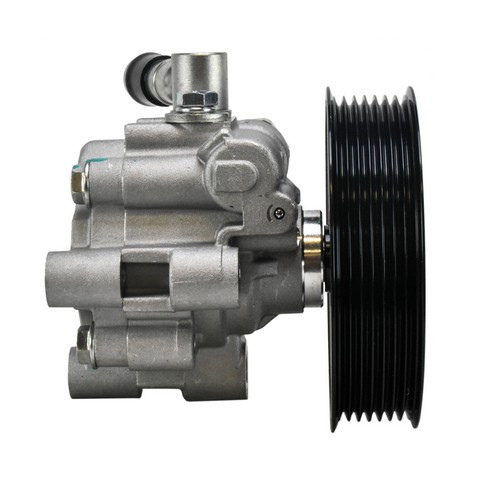

Atlantic Automotive Engineering 5635N power steering pump for the 2005-2015 Toyota Tacoma and other vehicles supplies the hydraulic pressure behind power-assisted steering. It replaces a failed pump in a hydraulic steering system.
- 100% hydraulically tested under load in the USA
- Upgraded shaft that is heat treated to prevent premature failure
- Aluminum housing
- Hose barb port, with a clamp-on inlet and a threaded outlet
Quick facts
- Part: Atlantic Automotive Engineering 5635N power steering pump
- Fits: 2005-2015 Toyota Tacoma and other vehicles
- Material: Aluminum (housing)
- Condition: New
A whine when you turn the wheel, steering that feels heavy, or fluid around the pump can mean the pump is wearing out. These signs alone do not prove the pump is at fault, since a leaking hose can also lower the fluid level.
Fits
This pump is a direct replacement for failed original units on the 2005-2015 Toyota Tacoma and the 2007-2009 Lexus RX350, and each of them takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet diameter: 16.0 mm
- Outlet diameter: 16.0 mm
- Pulley attachment: press-on
- Inlet attachment: clamp-on
- Outlet attachment: threaded
Build and materials
- Type: hydraulic
- Housing material: aluminum
- Reservoir: remote
- Grade: standard replacement
- Condition: new
- Country of origin: China
In the box
One power steering pump with its pulley and a return pipe adapter. The reservoir, reservoir cap, filter and mounting hardware are not included, so plan on new bolts.
Installation notes
- Replacing the steering fluid reservoir along with the pump is highly recommended.
- Flush and fill the steering system with an OE approved power steering fluid.
Interchange: 44310048070 · 443100E020 · 4431004130 · 4431004150
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
44310048070, 443100E020, 4431004130, 4431004150
Frequently Asked Questions
Is this a Toyota Tacoma power steering pump for the 2005-2015 model years?
Yes. Atlantic Automotive Engineering 5635N fits the 2005-2015 Toyota Tacoma, and it also fits the 2007-2009 Lexus RX350.
Does this power steering pump come with a pulley and a reservoir?
Yes to the pulley, no to the reservoir. This pump comes with its pulley and a return pipe adapter; the reservoir, reservoir cap, filter and mounting hardware are not included.
What size are the inlet and outlet ports on this power steering pump?
Atlantic Automotive Engineering 5635N has a 16.0 mm clamp-on inlet and a 16.0 mm threaded outlet, with a hose barb port.
Can a whine when turning the wheel mean the power steering pump is worn?
Yes. A whine or groan when turning, heavy steering or fluid around the pump can be signs of wear. Have the steering checked promptly; a shop can test the pump.
Should I replace the reservoir when installing this power steering pump?
Yes, replacing the reservoir along with the pump is highly recommended, because a clogged reservoir can starve the new pump. Flush and fill the system with an OE approved power steering fluid.
