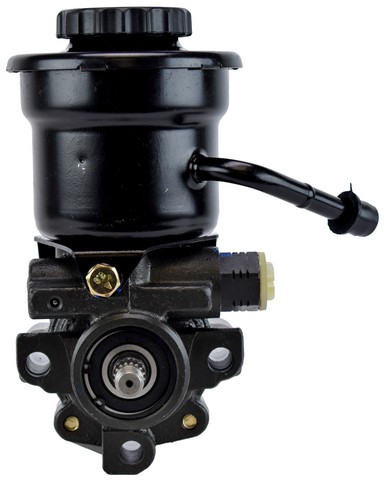

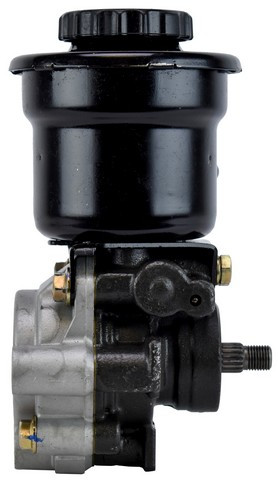

Atlantic Automotive Engineering 5685N power steering pump for the 1996-2002 Toyota Tacoma and other vehicles supplies the hydraulic pressure behind the steering assist. It is a direct replacement for a failed unit.
- Hydraulic testing under load in the USA on 100% of units
- Upgraded shaft is heat treated to prevent premature failure
- Aluminum housing with a bolt-on pulley attachment
- Reservoir and reservoir cap included
- Clamp-on inlet and threaded outlet, with a hose barb hose port type
Quick facts
- Part: Atlantic Automotive Engineering 5685N power steering pump
- Fits: 1996-2002 Toyota Tacoma and other vehicles
- Material: Aluminum housing
- Condition: New
A whine or groan when turning, stiff steering or a fluid leak at the pump can mean the pump is worn, though a clogged reservoir or a damaged hose can be behind them too, so find the cause before you replace the pump. The 1996-2002 Toyota Tacoma takes one, and this listing is one pump.
Fits
This pump is a direct replacement for the 1996-2002 Toyota Tacoma and the 1996-2000 Toyota 4Runner.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet diameter: 10.0 mm
- Outlet diameter: 16.0 mm
- Inlet attachment: clamp-on
- Outlet attachment: threaded
- Hose port type: hose barb
Build and materials
- Type: hydraulic
- Housing material: Aluminum
- Pulley attachment type: bolt-on
- Grade: standard replacement
- Condition: new
- Country of origin: China
In the box
One power steering pump with its reservoir and reservoir cap. The pulley, filter and mounting hardware are not included, so plan on new mounting hardware.
Installation notes
- Replacing the steering fluid reservoir along with the pump is highly recommended.
- Flush and fill the steering system with an OE approved power steering fluid.
Interchange: 4432004042 · 4432004043 · 4432035480
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
4432004042, 4432004043, 4432035480
Frequently Asked Questions
Is this a Toyota Tacoma power steering pump for the 1996-2002 model years?
Yes. Atlantic Automotive Engineering 5685N fits the 1996-2002 Toyota Tacoma.
Will this 4Runner power steering pump work on a 1996-2000 Toyota 4Runner?
Yes. Atlantic Automotive Engineering 5685N is a direct replacement for the 1996-2000 Toyota 4Runner.
Does this Atlantic Automotive Engineering power steering pump include the reservoir and pulley?
It includes the reservoir and reservoir cap. The pulley, filter and mounting hardware are not included.
What are the inlet and outlet sizes on this pump?
The inlet is 10.0 mm with a clamp-on attachment, and the outlet is 16.0 mm with a threaded attachment. The hose port type is hose barb.
Should I replace the steering fluid reservoir when I install this pump?
Replacing the reservoir is highly recommended, since a clogged reservoir can starve the replacement pump. Use an OE approved power steering fluid when you flush and fill the system.
