Front Wheel Bearing and Hub Assembly for 2009-2015 Honda Pilot & More - BCA WE60513

$143.99

Vehicles this part fits

    Part number: WE60513
    UPC: 662810605136
    Condition: New
    Weight: 10.00 LBS
    Item Package Quantity: 1
    $143.99
    Adding to cart… The item has been added

    Have questions?

    BCA Wheel Bearing and Hub Assembly P/N:WE60513
    BCA Wheel Bearing and Hub Assembly P/N:WE60513
    $143.99
    $143.99

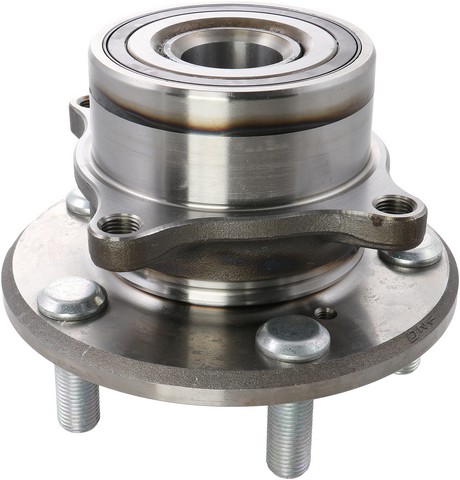

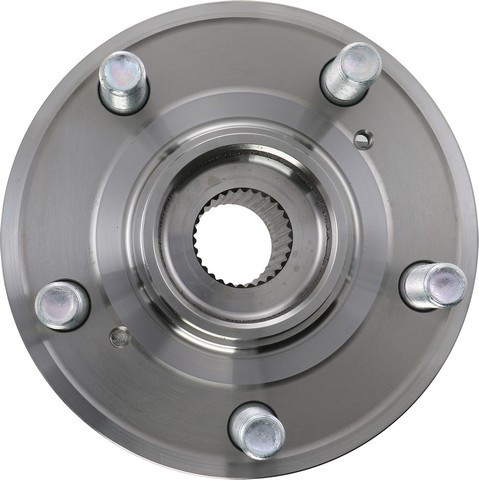

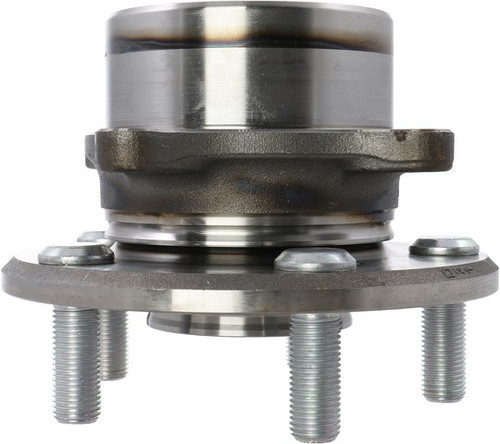

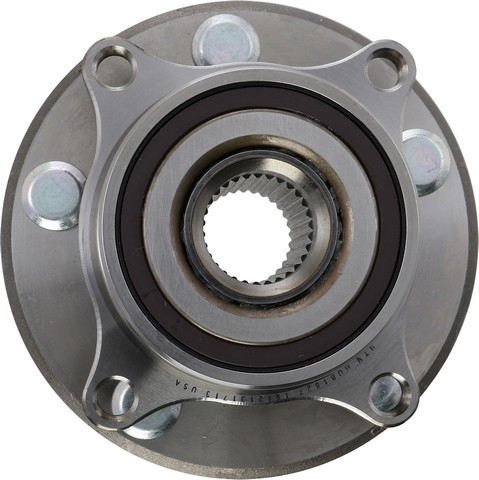

    BCA WE60513 front wheel bearing and hub assembly for the 2009-2015 Honda Pilot and other vehicles mounts the front wheel and lets it turn on a ball bearing. This Gen 3 unit includes its flange.

    • Seals molded over magnetic encoders and application-specific components for ABS operation
    • Forged-steel construction for toughness in harsh applications
    • Rolling element cages keep the rolling elements spaced, which reduces friction and operating temperature
    • Pre-lubricated bearings sealed for life with specialized grease for longer life and a wider operating temperature range
    • Application-specific engineering that reduces noise, vibration and harshness (NVH)

    Quick facts

    • Part: BCA WE60513 wheel bearing and hub assembly
    • Fits: 2009-2015 Honda Pilot and other vehicles
    • Position: Front
    • Condition: New

    A hum or growl that changes with speed, vibration or an ABS warning light can mean the bearing is wearing out. Worn tires, brake parts, a damaged CV axle or a loose suspension part can produce similar noise, so find the cause before buying. This listing is one hub assembly, and both front sides are normally replaced together.

    Fits

    It is a direct-fit replacement for the 2009-2015 Honda Pilot, the 2007-2013 Acura MDX and the 2010-2013 Acura ZDX.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Flange diameter: 152 mm (5.98 in)
    • Flange offset: 47.2 mm (1.858 in)
    • Bolt circle diameter: 120 mm (4.724 in), 5 wheel studs
    • Wheel pilot diameter: 64 mm (2.52 in)
    • Brake pilot diameter: 70 mm (2.756 in)
    • Knuckle pilot hole diameter: 88.8 mm (3.496 in)
    • Knuckle bolt circle diameter: 125 mm (4.921 in)
    • Flange bolt holes: 4
    • Wheel stud thread size: M14 - 1.5
    • Knuckle bolt thread size: M12 - 1.25
    • Spline quantity: 30

    Build and materials

    • Bearing type: Ball, Gen 3
    • Drive type: Driven
    • ABS: Yes, encoder type
    • Flange shape: Modified Rectangular
    • Condition: New
    • Country of origin: United States

    In the box

    One wheel bearing and hub assembly with its flange. The 2009-2015 Honda Pilot takes two.

    Interchange: 051-6408 · 400.40003 · 400.40003E
    44300STXA01 · 513267 · 1411247702 · 7350017 · H513267 · 713267 · BR930720 · 102221 · FW9267 · HA590228 · WA513267

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    44300STXA01, 513267, 1411247702, 0516408, 051-6408, 400.40003, 40040003, 400.40003E, 7350017, H513267, 713267, BR930720, 102221, FW9267, HA590228, WA513267

    Frequently Asked Questions

    Is the BCA WE60513 a wheel bearing replacement for the 2009-2015 Honda Pilot?

    Yes. The BCA WE60513 front wheel bearing and hub assembly is a direct-fit replacement for the 2009-2015 Honda Pilot, and that vehicle takes two.

    Is the BCA WE60513 the right wheel bearing for the 2007-2013 Acura MDX?

    Yes. The BCA WE60513 front wheel bearing and hub assembly fits the 2007-2013 Acura MDX, and the vehicle takes two.

    What are the bolt circle and pilot sizes on this BCA wheel bearing?

    The BCA WE60513 has a 120 mm bolt circle, a 64 mm wheel pilot and a 70 mm brake pilot. The knuckle pilot hole is 88.8 mm.

    What noises can a worn front wheel bearing make?

    A hum or growl that changes with vehicle speed, vibration or an ABS warning light can mean a worn wheel bearing. A shop can confirm it.

    Does this BCA wheel hub work with ABS?

    Yes. The ABS type is encoder, and the seals are molded over magnetic encoders where the application requires them.
