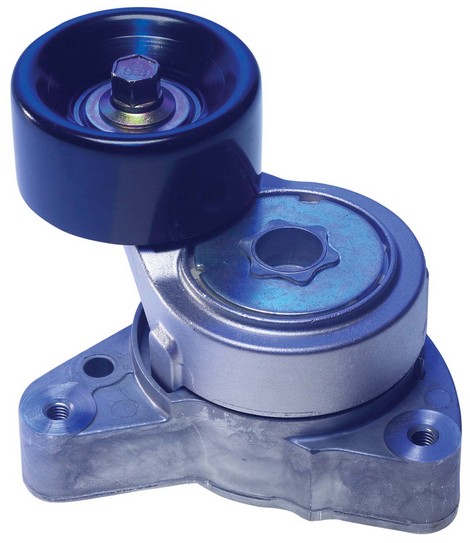

BELT DRIVE TENSIONER
Gates
GATES 38278 belt drive tensioner for the 2006-2011 Honda Civic 4-cylinder 2.0L, the 2012-2015 Civic 4-cylinder 2.4L and other vehicles keeps the serpentine belt under steady tension. It takes up slack in the belt that drives the engine accessories.
A worn tensioner can show up as belt squeal, a fluttering belt or noise from the tensioner pulley, but a stretched belt or a worn accessory pulley can make similar noise, so work out which part is behind it before buying a replacement.
This tensioner is listed for a wide range of Honda and Acura models, led by the 2002-2014 Honda CR-V 4-cylinder 2.4L and the 2003-2007 Honda Accord 4-cylinder 2.4L, and both take a single tensioner. It is made to rigid tolerances for OE fit, form and function, and the labyrinth seal is meant to meet or exceed OE life expectancy requirements. If your car is not named here, look it up in the "Vehicles it fits" section.
Fit and size
Build and materials
One belt drive tensioner assembly.
Interchange: 419-005
305321 · 89321 · 89321FN · 45712 · 49341 · 31170PNA003 · 31170PNA013 · 31170RAAA01 · 31170RAAA02 · 999661A · 999661 · HA1413172
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the GATES belt tensioner fit the 2003-2007 Honda Accord 4-cylinder 2.4L?
Yes, GATES 38278 is listed for the 2003-2007 Honda Accord 4-cylinder 2.4L, which takes one, and other models are in the "Vehicles it fits" section.
Does the GATES 38278 come as a bare pulley or a full assembly?
This belt drive tensioner is a full assembly with one pulley, sold individually.
What size is the GATES drive belt tensioner 38278?
The outside diameter is 76.5 mm (3.01 in), the width is 37.5 mm (1.48 in) and the bearing bore is 17 mm (0.67 in). It has 5 mounting holes.
How can I check a serpentine belt drive tensioner for wear?
With the engine off and cool, cracks or side-to-side play in the tensioner pulley can mean it is worn. A shop can test the spring tension and the bearing.
Is 31170RAAA01 an interchange number for GATES 38278?
Yes. GATES 38278 replaces 31170RAAA01, one of the interchange numbers listed on the product page.
