Starter for 2011-2021 Toyota Tundra & More - Bosch SR3296X

Be the first to review this product
$327.99
MPN: SR3296X
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

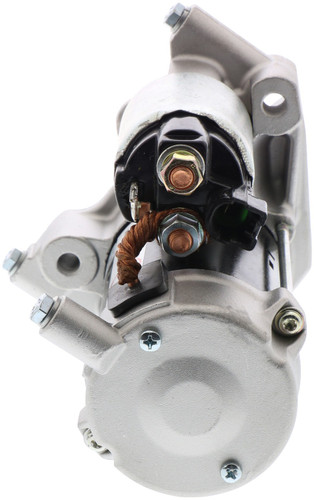

Bosch Starter P/N:SR3296X
Bosch Starter P/N:SR3296X
$327.99

Bosch SR3296X starter motor for the 2011-2021 Toyota Tundra 5.7L and other vehicles is a remanufactured unit with an attached solenoid that turns the engine over so it can start.

  • Part of the Bosch Premium Starter line
  • 100% factory tested for reliable performance in extreme heat, cold and high demand
  • Designed to be identical in fit and performance to the original equipment part it replaces
  • Designed for automatic start/stop operation
  • Backed by the Bosch Ultimate Protection Plan when registered at purchase: 2 years of 24-hour roadside assistance, with a free jump or tow up to 50 miles

Slow cranking, a click with no crank, or a grinding noise at startup can mean the starter motor is wearing out. A weak battery is another common reason for slow cranking, so these signs alone do not prove the starter motor is the problem. Only one starter motor goes on the engine.

The 2010-2022 Toyota Sequoia 5.7L and 2013-2021 Toyota Land Cruiser 5.7L are among the other vehicles this starter motor fits. Driving something else? Enter your year, make and model on the Buyer's Guide tab to see if it matches.

Specifications

Fit and size

  • Quantity per vehicle: 1
  • Voltage: 12 V DC
  • Power rating: 1.5 kW
  • Mounting type: flange, 2 mounting bolt holes
  • Flange: not re-clockable
  • Starter rotation: clockwise (right)
  • Nose cone type: closed nose
  • Length: 7.874016 in

Build and materials

  • Condition: remanufactured
  • Housing material: aluminum
  • Nose cone material: aluminum
  • Starter finish: aluminum
  • Solenoid: attached
  • Case: grounded case
  • Country of origin: United States

In the box

One starter motor. Mounting hardware and mounting shims are not included, so plan on new mounting bolts; the old ones may not be reusable.

Interchange: 281000S050 · 2810038080

This part cross-references / interchanges with the following part numbers:

281000S050, 2810038080

Frequently Asked Questions

Is the Bosch SR3296X the right Toyota Tundra starter motor for a 2011-2021 Toyota Tundra 5.7L?

Yes. Bosch SR3296X fits the 2011-2021 Toyota Tundra 5.7L, and the 2010-2022 Toyota Sequoia 5.7L as well. For any other vehicle, look it up on the Buyer's Guide tab.

Do the mounting bolts and shims come with the Bosch SR3296X?

No. This Bosch SR3296X starter motor ships without mounting hardware or mounting shims, so plan on new mounting bolts rather than reusing the old ones.

Which way does this Bosch self motor rotate, and is the solenoid attached?

This starter motor rotates clockwise (right), and the solenoid is attached. The 12-volt, 1.5 kW unit has a closed nose and mounts by flange with 2 bolt holes.

What sounds can a worn starter motor make?

A click with no crank, slow cranking or a grind after the engine starts can mean the starter motor is worn. A shop can test the starter motor on the vehicle.

Is this the Bosch kb starter motor, and does it carry the Ultimate Protection Plan?

This listing is the Bosch SR3296X starter motor. Bosch backs it with its Ultimate Protection Plan when the unit is registered at purchase: 2 years of 24-hour roadside assistance, with a free jump or tow up to 50 miles.
