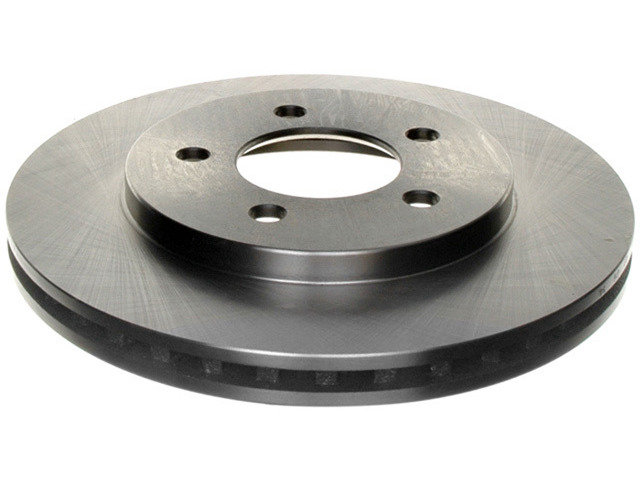

Designed for dependable everyday braking, the Raybestos R-Line Brake Rotor, part number 76646R, is a front vented rotor developed from OE samples for OE fit, form and function. It fits many vehicles, among them the 1991-2001 Dodge Grand Caravan, 1996-2000 Dodge Caravan and 1999-2001 Plymouth Prowler. See the Buyer's Guide tab for the full list.
Raybestos engineers its R-Line rotors and drums for everyday driving conditions.
- OE Fit, Form and Function: Developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE Standard: Meets the SAE standard for tensile strength, which supports structural integrity.
- Low Initial Lateral Runout and Thickness Variation: Held to small lateral runout and thickness variation parameters. This is designed to help reduce pedal pulsation and brake noise and to extend pad life.
- Mill Balanced Edges: Mill balanced and 100 percent validated. This is designed to help minimize thickness variation and vibration for smoother stopping.
This cast iron brake rotor is a conventional (not drum-in-hat) vented design with a non-directional braking surface. Its specifications are:
- Outside diameter: 11.1 in (281.95 mm)
- Nominal thickness: 0.945 in (24 mm)
- Discard thickness: 0.882 in (22.4 mm)
- Overall height: 1.5 in (38.1 mm)
- Center hole: 2.9 in (73.65 mm)
- Mounting bolt holes: five, 0.551 in (14 mm), on a 4.5 in (114.3 mm) bolt circle
An ABS tone ring is not included. Country of origin: China.
This rotor is sold individually, and this listing is for one rotor. The listed applications use two. When you replace 1996-2000 Dodge Caravan rotors or those on another listed vehicle, replacing both front sides together as a matched pair is recommended for even, balanced braking.
