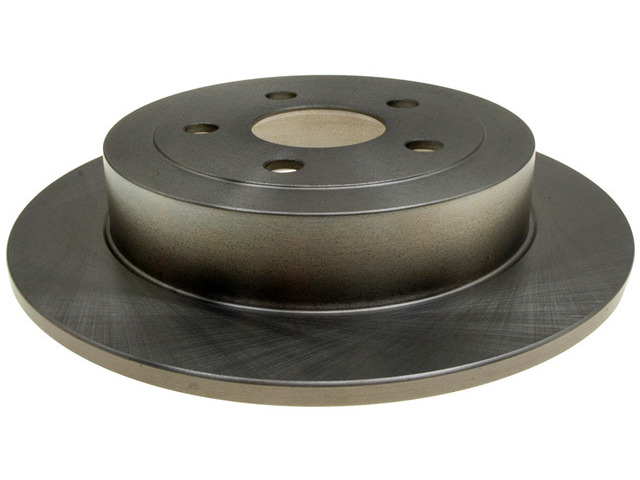

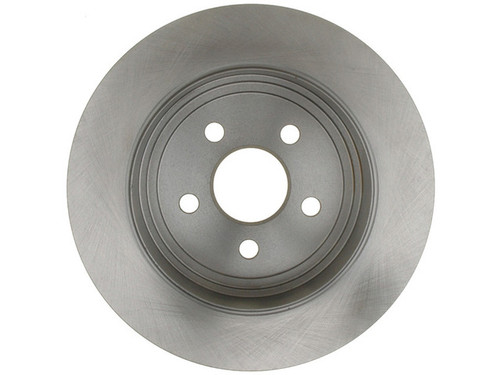

Raybestos Brakes Disc Brake Rotor P/N:76547R

Give your rear brakes a fresh friction surface with the Raybestos R-Line Brake Rotor 76547R, a solid cast-iron rear rotor engineered for everyday driving conditions. It is a direct-fit replacement for many vehicles, among them the 2004-2010 Chrysler PT Cruiser, 1995-2006 Dodge Stratus and 2004-2005 Dodge Neon. See the Buyer's Guide tab for the full list.

• OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
• SAE standard: Meets the SAE standard for tensile strength, supporting the rotor's structural integrity.
• Low initial lateral runout and thickness variation: Held to a small lateral runout and thickness variation. This is designed to help reduce pedal pulsation and brake noise and to support longer pad life.
• Mill balanced: R-Line rotors are mill balanced and 100 percent validated, which helps minimize thickness variation and vibration for smoother stops.

This is a drum-in-hat design, in which the hat section doubles as the drum for the parking brake shoes. The rotor has a non-directional braking surface and a 270 mm (10.63 in) outside diameter. Nominal thickness is 9.15 mm (0.36 in) and discard thickness is 7.25 mm (0.285 in). It has five 14 mm (0.551 in) mounting bolt holes on a 99.8 mm (3.93 in) bolt circle, a 57.4 mm (2.26 in) center hole and a 53.2 mm (2.095 in) overall height. The ABS tone ring is not included.

The rotor is sold individually, and this listing is for one rotor. The listed applications use two, so replacing both rear rotors together as a matched pair is recommended for even, balanced braking. Country of origin: China.
