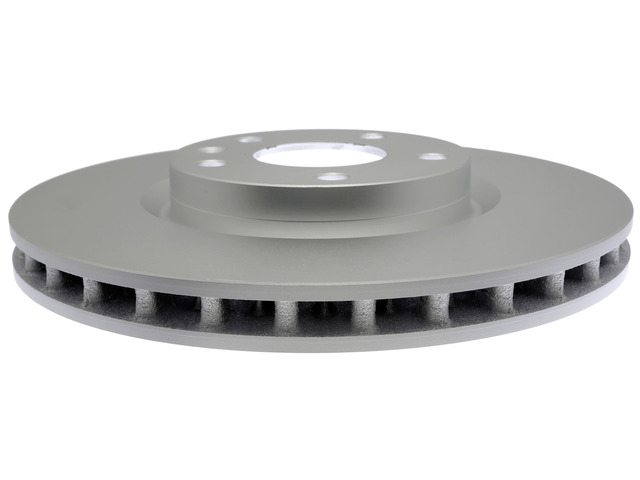

Restore confident, quiet front braking on your Corvette with the Raybestos Brakes Disc Brake Rotor 581612, a Raybestos Specialty Street Performance disc brake rotor. It installs as a direct-fit replacement for the 2014-2019 Chevrolet Corvette [All], mounting at the FRONT axle.
Specifications: 321 mm (12.638 in) outside diameter, vented construction, 5 mounting bolt holes on a 120 mm bolt circle, 30 mm nominal thickness with a 28 mm discard thickness, and a 70.7 mm center hole. No ABS tone ring is included. Sold individually; the front axle uses two, so order 2 and replace both sides together as a matched set for even, balanced braking. Country of origin: China.
Interchange: YH508482 · 72039DL · 521618RGS · 581612FZN · 581612R · 120.62146 · 121.62146 · 126.62146SL · 126.62146SR · 127.62146L · 127.62146R · 128.62146L · 128.62146R · BR901666 · 604-47050 · 60447050 · 20981819 · 84542300 · R1666 · 41317 · 1427-566215 · 1427566215. Manufacturer part number 581612.
This part cross-references / interchanges with the following part numbers:
Will this rotor fit my vehicle?
It's a front-axle direct-fit replacement for the 2014-2019 Chevrolet Corvette [All]. Check the Buyer's Guide tab to confirm your exact vehicle.
Is this a vented or solid rotor?
It's a vented rotor with cooling vanes matched to OE configurations for cooling and reduced fade.
How many rotors do I need?
Rotors are sold individually. The front axle uses two, so order 2 and replace both sides together as a matched set for even braking.
Does it include an ABS tone ring?
No. This rotor does not include an ABS tone ring.
What are the key dimensions?
321 mm (12.638 in) outside diameter, 30 mm nominal thickness, 28 mm discard thickness, 70.7 mm center hole, and 5 mounting bolt holes on a 120 mm bolt circle.
