Rear Brake Rotor for 2018-2025 Jeep Wrangler - Raybestos 782484R

$55.99

Vehicles this part fits

    Part number: 782484R
    UPC: 887213318708
    Condition: New
    Weight: 19.00 LBS
    Item Package Quantity: 1
    $55.99
    Adding to cart… The item has been added

    Have questions?

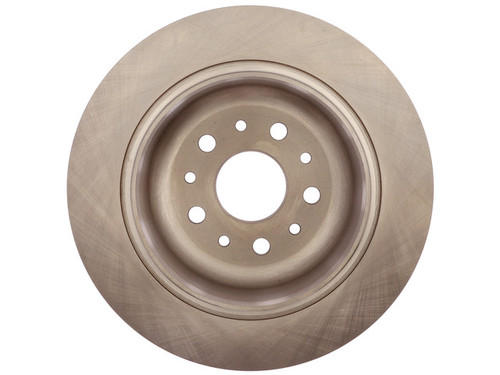

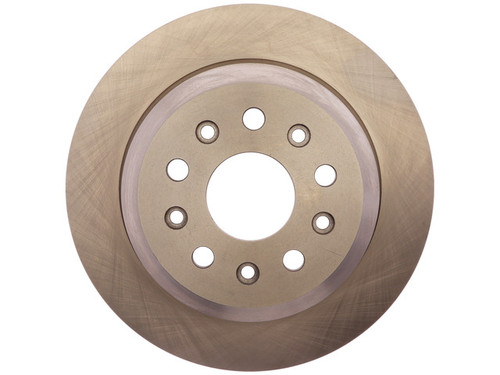

    Raybestos Brakes Disc Brake Rotor P/N:782484R
    Raybestos Brakes Disc Brake Rotor P/N:782484R
    $55.99
    $55.99

    Raybestos Brakes 782484R rear brake rotor for the 2018-2025 Jeep Wrangler gives the rear brake pads a smooth, flat face to clamp against. It was developed from OE samples for OE fit, form and function.

    • Raybestos R-Line series, engineered for everyday driving conditions
    • Made with G3000-qualified material
    • Meets the SAE standard for tensile strength
    • Low lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
    • Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration

    Quick facts

    • Part: Raybestos Brakes 782484R brake rotor
    • Also called: disc brake rotor
    • Fits: 2018-2025 Jeep Wrangler
    • Position: Rear
    • Material: Cast Iron
    • Condition: New

    A worn disc brake rotor can show up as pedal pulsation, vibration under braking or grooves in the face. Pulsation and noise can also start elsewhere in the brake system, so find the cause before you replace the rotor. During a brake service, with the engine off, measure the thickness and compare it with the 12.4 mm discard thickness. Rear rotors are normally replaced as a pair; this listing is one.

    Fits

    This rotor fits the 2018-2025 Jeep Wrangler.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2
    • Outside diameter: 342 mm (13.465 in)
    • Inside diameter: 241.7 mm (9.516 in)
    • Center hole diameter: 72 mm (2.835 in)
    • Bolt circle: 127 mm (5 in), 5 lug holes
    • Bolt hole diameter: 17 mm (0.669 in)
    • Overall height: 76.5 mm (3.012 in)
    • Nominal thickness: 14 mm (0.551 in)
    • Discard thickness: 12.4 mm (0.488 in)

    Build and materials

    • Type: Solid, drum-in-hat
    • Construction: Full cast
    • Material: Cast iron
    • Surface: Smooth, non-directional
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    In the box

    One rear brake rotor; the vehicle takes two. Wheel bearings and the ABS tone ring are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the Raybestos Brakes 782484R rear rotor right for the 2018-2025 Jeep Wrangler?

    Yes. The Raybestos Brakes 782484R rear rotor fits the 2018-2025 Jeep Wrangler, and the vehicle takes two.

    Are brake pads and rotors for the 2018-2025 Jeep Wrangler sold together on this listing?

    No. This listing is one rear rotor. Brake pads are sold separately.

    Is the 782484R a solid or vented rotor, and what is its bolt pattern?

    This rotor is solid, with full-cast cast iron construction. It has 5 bolt holes on a 127 mm (5 in) bolt circle and a 72 mm (2.835 in) center hole.

    How can I tell when the 782484R rotor has worn thin?

    Look for grooves in the face and for pedal pulsation or vibration when braking. Measure the thickness against the 12.4 mm (0.488 in) discard thickness.

    Does the Raybestos Brakes 782484R come with an ABS tone ring?

    No. The Raybestos Brakes 782484R does not include an ABS tone ring or wheel bearings.
