Rear Brake Rotor for 2012-2023 Ford F-250 Super Duty & More - Raybestos 681017R

$185.99

Vehicles this part fits

    Part number: 681017R
    UPC: 887213083736
    Condition: New
    Weight: 10.59 LBS
    Item Package Quantity: 1
    $185.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Rotor P/N:681017R
    Raybestos Brakes Disc Brake Rotor P/N:681017R
    $185.99
    $185.99

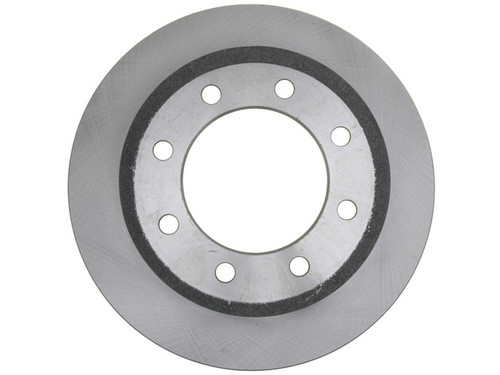

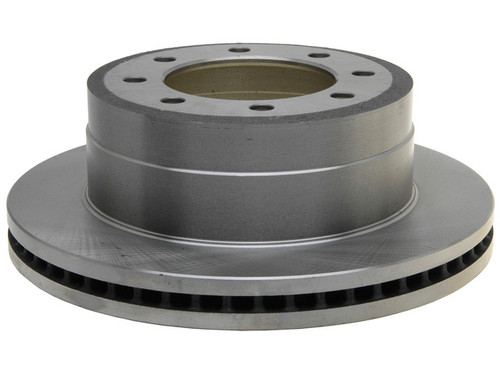

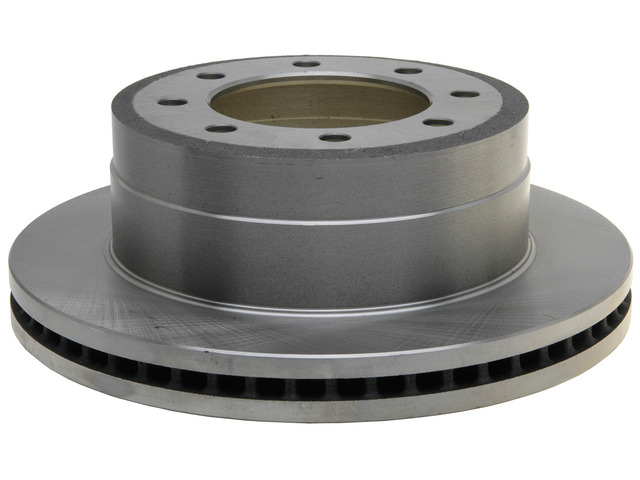

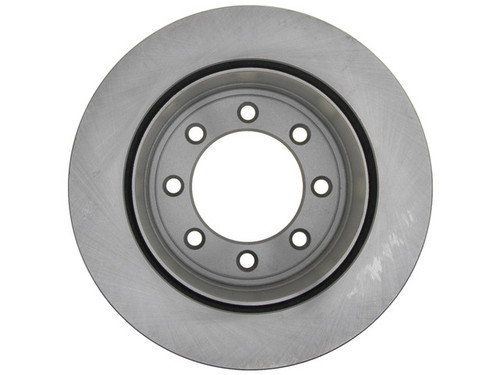

    Raybestos Brakes 681017R rear brake rotor for the 2012-2023 Ford F-250 Super Duty and other vehicles gives the brake pads a smooth surface to clamp against when you brake. Developed from OE samples, this disc brake rotor is built for OE fit, form and function.

    • Raybestos R-Line series, engineered for everyday driving conditions
    • Cast iron made with G3000-qualified material
    • Meets the SAE standard for tensile strength
    • Low initial lateral runout and thickness variation for less pedal pulsation and brake noise
    • Mill-balanced edges, 100 percent validated, to minimize vibration for smoother stopping

    Quick facts

    • Part: Raybestos Brakes 681017R brake rotor
    • Also called: disc brake rotor
    • Fits: 2012-2023 Ford F-250 Super Duty and other vehicles
    • Position: Rear
    • Material: Cast iron
    • Condition: New

    A pulsing brake pedal, vibration when braking or deep grooves on the rotor face can mean the rotor is worn. Before you replace it, rule out a sticking caliper or worn pads, since either can produce similar symptoms.

    Fits

    It fits the 2012-2023 Ford F-250 Super Duty and the 2012-2023 Ford F-350 Super Duty, with one rotor on each side of the rear axle. Replace the two rear rotors together; this listing is one rotor, sold individually.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2
    • Outside diameter: 362.9 mm (14.287 in)
    • Inside diameter: 250.95 mm (9.88 in)
    • Center hole diameter: 127 mm (5 in)
    • Bolt circle: 170 mm (6.693 in), 8 lug holes
    • Bolt hole diameter: 16.2 mm (0.638 in)
    • Nominal thickness: 38 mm (1.496 in)
    • Discard thickness: 36.4 mm (1.433 in)
    • Overall height: 126.15 mm (4.966 in)

    Build and materials

    • Type: vented, drum-in-hat
    • Surface: smooth, non-directional
    • Material: cast iron
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Are these 2012-2023 Ford F-250 Super Duty brake rotors for the rear axle?

    Yes. Raybestos Brakes 681017R is a rear rotor for the 2012-2023 Ford F-250 Super Duty, and it also fits the 2012-2023 Ford F-350 Super Duty.

    Is the 681017R rotor vented or solid?

    Raybestos Brakes 681017R is vented, with a drum-in-hat design and a smooth, non-directional surface. Its outside diameter is 362.9 mm (14.287 in).

    Does this rear rotor come with an ABS tone ring?

    No. The ABS tone ring is not included with this rotor.

    What is the minimum thickness for this rotor?

    The discard thickness is 36.4 mm (1.433 in), against a nominal thickness of 38 mm (1.496 in). A rotor worn to 36.4 mm needs replacing.

    How many lug holes and what bolt circle does this rotor have?

    This rotor has eight lug holes on a 170 mm (6.693 in) bolt circle, with a 127 mm (5 in) center hole.
