Front Brake Rotor for 2014-2023 Jeep Cherokee & More - Raybestos 781768R

$127.99

Vehicles this part fits

    Part number: 781768R
    UPC: 887213137057
    Condition: New
    Weight: 1.78 LBS
    Item Package Quantity: 1
    $127.99
    Adding to cart… The item has been added

    Have questions?

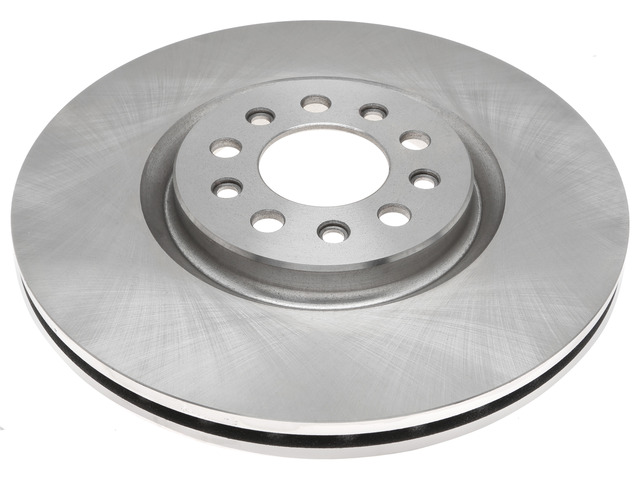

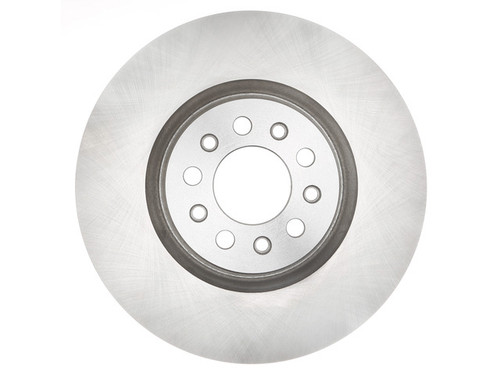

    Raybestos Brakes Disc Brake Rotor P/N:781768R
    Raybestos Brakes Disc Brake Rotor P/N:781768R
    $127.99
    $127.99

    Raybestos Brakes 781768R front brake rotor for the 2014-2023 Jeep Cherokee and other vehicles gives the brake pads a smooth surface to clamp against. This vented rotor is non-directional and was developed from OE samples for OE fit, form and function.

    • Raybestos R-Line series, engineered for everyday driving conditions
    • Made with G3000-qualified material for dependable braking
    • Meets the SAE standard for tensile strength
    • Low lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
    • Mill balanced edges, 100 percent validated, to minimize vibration for smoother stopping

    Quick facts

    • Part: Raybestos Brakes 781768R brake rotor
    • Also called: disc brake rotor
    • Fits: the 2014-2023 Jeep Cherokee and other vehicles
    • Position: Front
    • Material: Cast Iron
    • Condition: New

    A sticking caliper or worn pads can be behind pedal pulsation, brake noise or vibration under braking, so find the cause before replacing the rotor. Deep grooves or a thickness below the discard figure point to a worn rotor.

    Fits

    The 2014-2023 Jeep Cherokee, the 2023-2025 Dodge Hornet and other vehicles take this rotor, and the 2025 Jeep Compass brake rotors are the same part. If your car is not named here, look for it in the "Vehicles it fits" section. One rotor goes on each side of the front axle; this listing is a single rotor, and the other side of that axle is normally done at the same time.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 330 mm (12.992 in)
    • Center hole diameter: 70.1 mm (2.76 in)
    • Inside diameter: 198.1 mm (7.799 in)
    • Bolt circle: 110 mm (4.331 in), 5 lug holes
    • Mounting bolt hole diameter: 15.7 mm (0.618 in)
    • Nominal thickness: 28 mm (1.102 in)
    • Discard thickness: 26.4 mm (1.039 in)
    • Overall height: 39.6 mm (1.559 in)

    Build and materials

    • Type: vented, conventional
    • Surface: smooth, non-directional
    • Material: cast iron
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the right 2014-2023 Jeep Cherokee brake rotor?

    Yes. Raybestos Brakes 781768R is a front brake rotor for the 2014-2023 Jeep Cherokee. For another model, look it up in the "Vehicles it fits" section.

    Are these the 2016 Jeep Cherokee brake pads and rotors?

    No. This listing is a single front rotor, and it fits the 2016 Jeep Cherokee along with other model years. Brake pads are sold separately.

    What size is this front rotor?

    Raybestos Brakes 781768R measures 330 mm (12.992 in) across, with a 70.1 mm center hole and 5 lug holes on a 110 mm bolt circle.

    How thin can this disc brake rotor wear before it is replaced?

    The discard thickness is 26.4 mm (1.039 in), against 28 mm (1.102 in) when new. A rotor at or below that figure is worn out.

    Is this front rotor vented, and is it directional?

    Yes, it is vented. It is a cast iron rotor with a smooth, non-directional surface.
