Front Brake Rotor for 2012-2020 Dodge Grand Caravan & More - Raybestos 780964R

$124.99

Vehicles this part fits

    Part number: 780964R
    UPC: 887213006353
    Condition: New
    Weight: 5.26 LBS
    Item Package Quantity: 1
    $124.99
    Adding to cart… The item has been added

    Have questions?

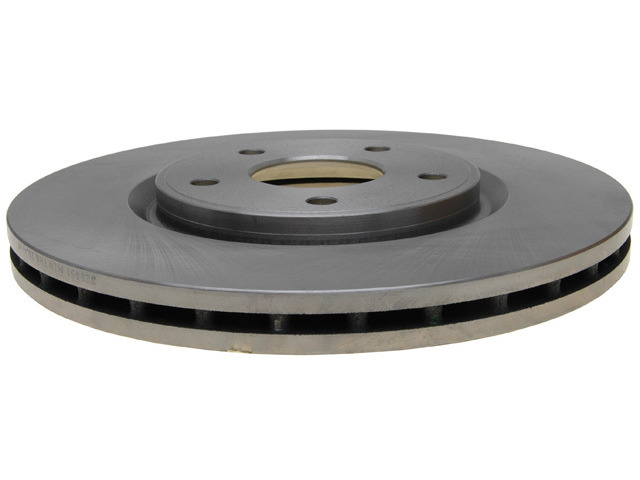

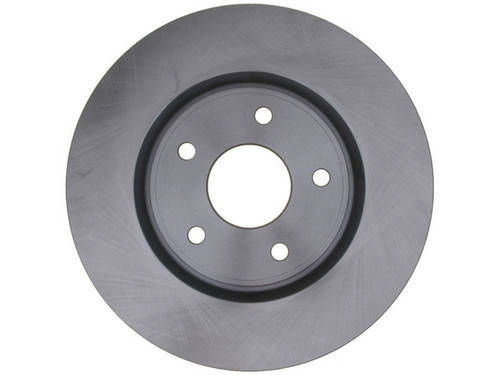

    Raybestos Brakes Disc Brake Rotor P/N:780964R
    Raybestos Brakes Disc Brake Rotor P/N:780964R
    $124.99
    $124.99

    Raybestos Brakes 780964R front brake rotor for the 2012-2020 Dodge Grand Caravan and other vehicles gives the brake pads a surface to clamp against when you slow down.

    • Raybestos R-Line series, engineered for everyday driving conditions
    • Made with G3000-qualified material
    • Meets the SAE standard for tensile strength
    • Low initial lateral runout and thickness variation, for less pedal pulsation and brake noise
    • Mill balanced edges, 100 percent validated, to minimize vibration

    Quick facts

    • Part: Raybestos Brakes 780964R brake rotor
    • Also called: disc brake rotor
    • Fits: 2012-2020 Dodge Grand Caravan and other vehicles
    • Position: Front
    • Material: Cast Iron
    • Condition: New

    Pedal pulsation, vibration or noise when braking can mean the rotor is worn, though worn pads or a sticking caliper can be behind them too, so find the cause before you replace anything. This listing is one rotor, and the two front rotors are normally replaced together.

    Fits

    This front rotor fits the 2012-2020 Dodge Grand Caravan, the 2012-2016 Chrysler Town & Country and the 2012-2020 Dodge Journey, which each take two. It was developed from OE samples for OE fit, form and function. Driving something else? Run your own year and model through the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Front
    • Outside diameter: 330 mm (12.992 in)
    • Inside diameter: 209.7 mm (8.256 in)
    • Center hole diameter: 72.4 mm (2.85 in)
    • Bolt circle: 127 mm (5 in), 5 lug holes
    • Mounting bolt hole diameter: 14.4 mm (0.566 in)
    • Overall height: 38.25 mm (1.506 in)
    • Nominal thickness: 28 mm (1.102 in)
    • Discard thickness: 26.4 mm (1.039 in)

    Build and materials

    • Type: Vented, conventional (not drum-in-hat)
    • Surface: Smooth, non-directional
    • Material: Cast Iron
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this front rotor the right one for 2014 Dodge Grand Caravan brakes and rotors in the 2012-2020 range?

    Yes. Raybestos Brakes 780964R is a front brake rotor for the 2012-2020 Dodge Grand Caravan, which takes two. This listing is one rotor, sold individually.

    Is this one of the Dodge Journey brake rotors for the 2012-2020 model years?

    Yes. Raybestos Brakes 780964R front rotor fits the 2012-2020 Dodge Journey, which takes two. Each listing is a single rotor.

    What is the discard thickness of this disc brake rotor?

    Discard thickness is 26.4 mm (1.039 in), against a nominal thickness of 28 mm (1.102 in). Measure it as part of a brake service and compare the reading to that number.

    Does this Raybestos R-Line rotor come with an ABS tone ring?

    No. The ABS tone ring is not included with Raybestos Brakes 780964R; the listing is one front rotor only.

    Is this R-Line rotor vented, and what size is it?

    Yes, this rotor is vented, with a 330 mm (12.992 in) outside diameter and a 72.4 mm center hole. It has 5 lug holes on a 127 mm bolt circle.
