Front Brake Rotor for 2023-2025 Ram 1500 - Raybestos 782430R

$110.99
Sold out

Vehicles this part fits

    Part number: 782430R
    UPC: 887213316353
    Condition: New
    Weight: 12.50 LBS
    Item Package Quantity: 1
    $110.99

    Out of stock

    Have questions?

    Raybestos Brakes Disc Brake Rotor P/N:782430R
    Raybestos Brakes Disc Brake Rotor P/N:782430R
    $110.99
    $110.99

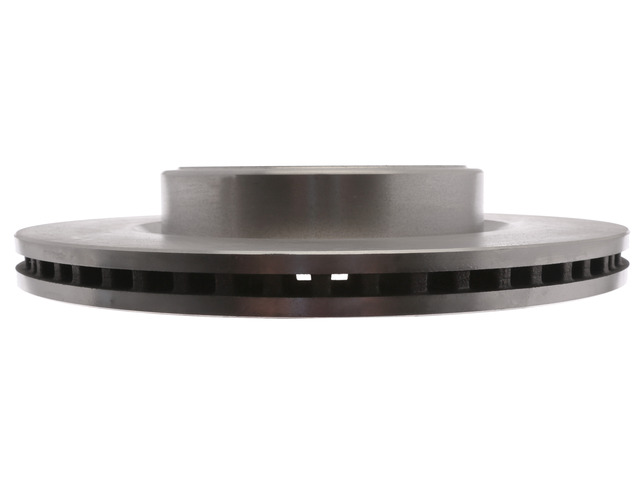

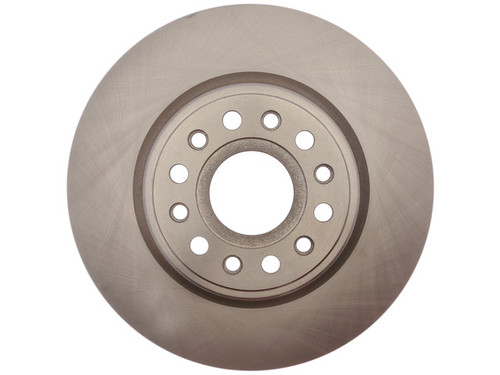

    Raybestos Brakes 782430R front brake rotor for the 2023-2025 Ram 1500 slows the vehicle as the pads clamp its smooth surface. This disc brake rotor is developed from OE samples for OE fit, form and function.

    • Raybestos R-Line series, engineered for everyday driving conditions
    • G3000-qualified material for dependable braking
    • Meets the SAE standard for tensile strength
    • Small lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
    • Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration

    Quick facts

    • Part: Raybestos Brakes 782430R brake rotor
    • Also called: disc brake rotor
    • Fits: 2023-2025 Ram 1500
    • Position: Front
    • Material: Cast Iron
    • Condition: New

    Visible grooves or heavy rust, vibration while braking, or a thickness below the discard spec can mean a rotor is worn out. Before you replace the rotor, rule out a sticking caliper, worn pads or loose wheel hardware, since each of those can produce pulsation or noise too.

    Fits

    These are Ram 1500 rotors for the 2019-2021 and 2023-2025 Ram 1500, and the vehicle takes two on the front axle. This listing is one rotor; the other side of that axle is normally done at the same time.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 378.0 mm (14.9 in)
    • Maximum brake diameter (discard): 378.0 mm
    • Inside diameter: 239.2 mm (9.4 in)
    • Center hole diameter: 78.4 mm (3.1 in)
    • Bolt circle: 139.7 mm (5.5 in), 6 lug holes
    • Mounting bolt hole diameter: 17.1 mm (0.7 in)
    • Nominal thickness: 30.0 mm (1.2 in)
    • Discard thickness: 28.4 mm (1.1 in)
    • Overall height: 67.5 mm (2.7 in)

    Build and materials

    • Type: vented, conventional, full cast
    • Surface: smooth, non-directional
    • Material: Cast Iron
    • Coating: rust-resistant coating
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    In the box

    One front brake rotor. Bearings and the ABS tone ring are not included.

    Interchange: 120.67082 · 121.67082 · BR901754-02 · 604-40120
    YH651931P · 72140DG · 72140DL · 622332RGS · 68237063AA · 68237063AB · 68368450AA · BR901754 · 53152 · 901754 · 43210 · TN782430GEO · BD180841E · 6622332

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    YH651931P, 72140DG, 72140DL, 622332RGS, 120.67082, 121.67082, 68237063AA, 68237063AB, 68368450AA, BR901754, BR901754-02, 604-40120, 53152, 901754, 43210, TN782430GEO, BD180841E, 6622332

    Frequently Asked Questions

    Does Raybestos Brakes 782430R fit the 2019-2021 Ram 1500?

    Yes. Raybestos Brakes 782430R is a front rotor for the 2019-2021 and 2023-2025 Ram 1500, and the vehicle takes two on the front axle.

    Are brake pads and rotors for the 2023-2025 Ram 1500 sold together here?

    No. Raybestos Brakes 782430R is one front rotor. Brake pads are not included and are sold separately.

    What are the thickness and discard thickness of the Raybestos R-Line 782430R rotor?

    Nominal thickness is 30.0 mm (1.2 in) and the discard thickness is 28.4 mm (1.1 in). Compare a measurement of the cool rotor against that figure during a brake service.

    Is this rotor vented or solid, and what is it made of?

    It is a vented, full-cast rotor made of cast iron, with a smooth, non-directional surface.

    Does this front rotor come with the ABS tone ring or bearings?

    No. This rotor comes without the ABS tone ring and without bearings. Its bolt circle is 139.7 mm with 6 lug holes.
