Front Brake Rotor for 2011-2020 Jeep Grand Cherokee & More - Raybestos 780868R

$80.99

Vehicles this part fits

    Part number: 780868R
    UPC: 829352846957
    Condition: New
    Weight: 5.28 LBS
    Item Package Quantity: 1
    $80.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Rotor P/N:780868R
    Raybestos Brakes Disc Brake Rotor P/N:780868R
    $80.99
    $80.99

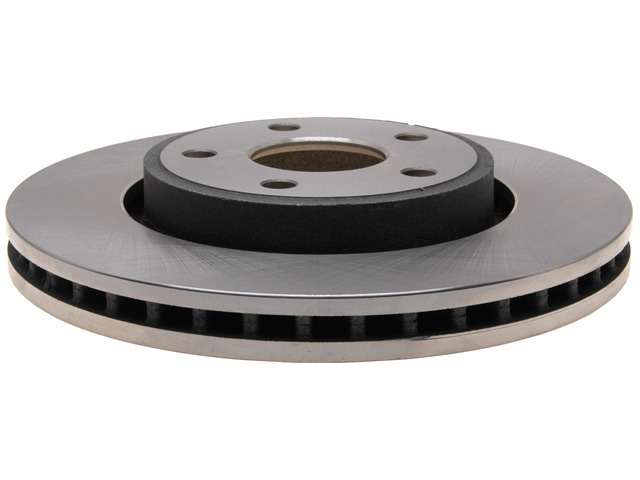

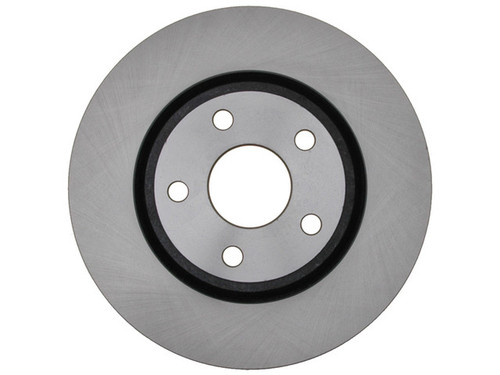

    Raybestos Brakes 780868R front brake rotor for the 2011-2020 Jeep Grand Cherokee and other vehicles provides the friction surface the brake pads clamp against. This vented disc brake rotor has a smooth, non-directional face and a cast iron body.

    • Raybestos R-Line rotor engineered for everyday driving conditions
    • G3000-qualified material
    • Meets the SAE standard for tensile strength
    • Small lateral runout and low thickness variation for less pedal pulsation, less brake noise and longer pad life
    • Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration

    Quick facts

    • Part: Raybestos Brakes 780868R brake rotor
    • Also called: disc brake rotor
    • Fits: 2011-2020 Jeep Grand Cherokee and other vehicles
    • Position: Front
    • Material: Cast iron
    • Condition: New

    A pulsing brake pedal, squealing, or a grooved or scored rotor face can mean the rotor is worn. Before replacing it, measure its thickness during a brake service, with the vehicle off and cool, against the 30.5 mm discard thickness; worn pads or caliper trouble can cause similar signs. Front rotors are normally replaced as a pair. This listing is a single rotor, and the front axle takes one on each side.

    Fits

    It fits the 2011-2020 Jeep Grand Cherokee and the 2011-2020 Dodge Durango, developed from OE samples for OE fit, form and function.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 330 mm (12.992 in)
    • Inside diameter: 209.5 mm (8.248 in)
    • Center hole diameter: 72.15 mm (2.84 in)
    • Bolt circle: 127 mm (5 in), 5 lug holes
    • Mounting bolt hole diameter: 16.95 mm (0.667 in)
    • Nominal thickness: 32 mm (1.26 in)
    • Discard thickness: 30.5 mm (1.201 in)
    • Overall height: 54.5 mm (2.146 in)

    Build and materials

    • Type: Vented, conventional
    • Surface: Smooth, non-directional
    • Material: Cast iron
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Are these 2011-2020 Jeep Grand Cherokee rotors front or rear?

    They are front rotors. Raybestos Brakes 780868R has five lug holes on a 127 mm bolt circle and a 72.15 mm center hole.

    Is this a front 2011-2020 Dodge Durango brake rotor?

    Yes. This front rotor is made for the 2011-2020 Dodge Durango and measures 330 mm across the outside.

    Is the Raybestos 780868R rotor solid or vented?

    Vented. The Raybestos Brakes 780868R is a conventional cast iron rotor with a smooth surface and a nominal thickness of 32 mm (1.26 in).

    At what thickness is this rotor worn out?

    The discard thickness is 30.5 mm (1.201 in), against a new thickness of 32 mm. A rotor measuring at or below 30.5 mm should be replaced.

    Does the 780868R rotor come with an ABS tone ring?

    No. The ABS tone ring is not included with this rotor; it is sold without one.
