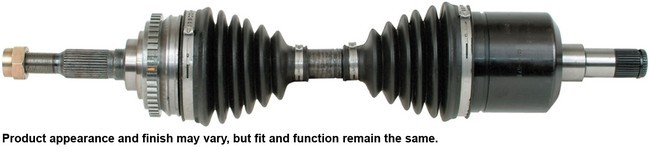

CARDONE New 66-1110 front right CV axle for the 1994-1998 Buick Skylark and other vehicles carries drive torque from the transaxle to the wheel. The CV axle assembly arrives with both CV joints, which flex with the suspension, ready to replace the old axle as one piece.
- Neoprene boots with extra bellows where needed, to resist bellow stress and cracking, the leading cause of boot failure
- Every shaft individually verified for straightness, for vibration-free performance at all speeds
- New axle retaining nut supplied, since the original nut is likely worn or stripped
- Axle measurements validated after assembly; boot clamps pneumatically crimped to seal boot to housing
- Grease that withstands high-temperature and high-torque demands
- Splines and threads precision rolled to fit the mating hub, the transmission and the axle nut
Quick facts
- Part: CARDONE New 66-1110 CV axle
- Also called: CV axle assembly
- Fits: 1994-1998 Buick Skylark and other vehicles
- Position: Front right
- Material: Steel shaft, neoprene boot
- Condition: New
A clicking or snapping noise when you turn with the wheel cut hard, or a thump and vibration when you accelerate, can mean a joint is worn. Grease on the chassis or suspension can mean a boot has split. A broken engine mount can produce similar symptoms, so look over the boots and mounts by eye with the engine off before you order.
Fits
This front right CV axle is a direct-fit replacement for the 1994-1998 Buick Skylark, the 1994-1998 Oldsmobile Achieva and the 1994-1998 Pontiac Grand Am, built to O.E. form, fit and function. If your car is not one of these, open the "Vehicles it fits" section and check your exact model and year there.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Shaft diameter: 28 mm (1.102 in)
- Compressed length: 539.75 mm (21.25 in)
- Spline count: 34 inboard, 33 outboard
- Axle nut thread: M20x1.5
- Axle nut socket size: 30 mm (1.181 in)
- Axle nut length: 20 mm (0.787 in)
Build and materials
- Shaft material: Steel
- Boot material: Neoprene, 6 ribs
- CV joints: Included, splined inboard and outboard

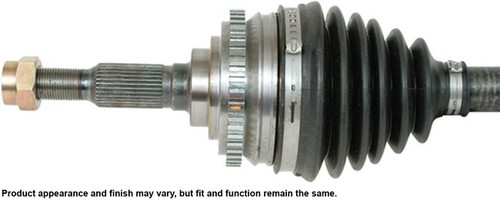

- ABS tone ring: Included, toothed, 48 teeth
- Axle nut: Hex, included
- Condition: New
- Country of origin: China
In the box
One complete axle, one axle retaining nut and an instruction sheet. This listing is one axle for the front right, which takes one; the front left is a separate part, and both sides are normally replaced together.
Installation notes
- Remove and install one axle at a time, and do not let an axle hang unsupported.
- Press the old stub shaft out of the hub with a proper press tool; never strike it with a hammer.
- Discard the old locking nut and tighten the new one with a torque wrench to the manufacturer's specification, not an impact wrench.
- Install new transaxle seals to avoid leaks.
Interchange: 26059858
Frequently Asked Questions
Is this the CV axle for a 1994-1998 Pontiac Grand Am?
Yes. CARDONE New 66-1110 is the front right CV axle for the 1994-1998 Pontiac Grand Am. The front left side is a separate part.
Does this CV axle come with a new axle nut?
Yes, a new hex axle retaining nut (M20x1.5 thread, 30 mm socket) comes with the axle, along with an instruction sheet. The CV joints are already on the axle.
Does the front right CV axle include the ABS tone ring?
Yes. CARDONE New 66-1110 has a toothed ABS tone ring with 48 teeth.
How can I tell if a CV axle boot is damaged?
With the engine off, look for splits in the boot or grease thrown onto the chassis and suspension. Clicking when turning or vibration under acceleration can also come from a worn joint.
What should I do with the old locking axle nut?
Discard it and fit the new nut supplied, because a prevailing torque lock nut should never go back on the axle. Tighten the new nut with a torque wrench to the manufacturer's specification, not an impact wrench.
