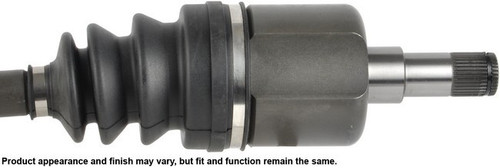

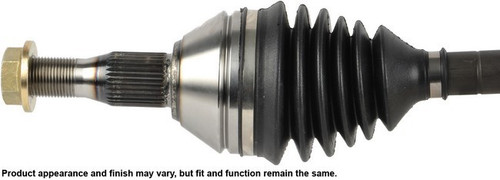

CARDONE New 66-1445 front right CV axle for the 2005-2009 Chevrolet Uplander and other vehicles carries engine torque from the transaxle to the front right wheel. This new CV axle assembly includes its CV joints and is engineered around the reasons original axles typically fail.
- Neoprene boots with additional bellows, when needed, to resist bellow stress and cracking, a leading cause of boot failure
- Shaft individually verified for straightness, for vibration-free performance at all speeds
- Axle measurements validated after assembly to confirm a proper fit
- Boot clamps pneumatically crimped to seal the boot to the housing
- Grease made to withstand high-temperature and high-torque demands
- Precision-rolled splines and threads for a proper fit in the mating hub, the transmission and the axle nut
Quick facts
- Part: CARDONE New 66-1445 CV axle
- Also called: CV axle assembly
- Fits: 2005-2009 Chevrolet Uplander and other vehicles
- Position: Front right
- Material: Steel shaft
- Condition: New
Clicking or snapping on hard turns, a thump or vibration when you accelerate, or grease on the chassis and suspension can point to a worn joint or a torn boot. Before you replace the axle, rule out a broken engine mount or a damaged wheel speed sensor ring or its wiring.
Fits
This axle is listed for a wide range of Buick, Chevrolet, Pontiac and Saturn models, including the 2005-2009 Chevrolet Uplander, the 2005-2009 Pontiac Montana and the 2002-2007 Buick Rendezvous. This listing is one front right axle, which is the one axle this side takes; the front left is a separate part ordered separately. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Shaft diameter: 28 mm (1.102 in)
- Compressed length: 641.35 mm (25.25 in)
- Inboard spline quantity: 34
- Outboard spline quantity: 33
- Axle nut thread size: M24x2.0
- Axle nut socket size: 34 mm (1.339 in)
Build and materials
- Shaft material: Steel
- Boot material: Neoprene
- Joints: splined inboard and outboard CV joints included
- ABS tone ring: not included
- Condition: New
- Country of origin: China
In the box
One complete CV axle with a new axle nut and an instruction sheet.
Installation notes
- Discard the old locking (prevailing torque) nut and never reuse it.
- Remove and install one CV axle at a time.
- Tighten the axle nut with a torque wrench to the manufacturer's specification, never an impact wrench.
- Install new transaxle seals with the axle.
Interchange: 10424904 · 19153645 · 88964159
This part cross-references / interchanges with the following part numbers:
10424904, 19153645, 88964159
Frequently Asked Questions
Does the CARDONE New 66-1445 CV axle fit a 2005-2009 Pontiac Montana?
Yes. CARDONE New 66-1445 is listed for the 2005-2009 Pontiac Montana as the front right axle, one per vehicle on that side. Open the "Vehicles it fits" section to check your exact model and engine.
What comes with the CARDONE 66-1445 CV axle besides the shaft?
CARDONE 66-1445 comes with a new axle nut and an instruction sheet. The ABS tone ring is not included.
What thread and socket size does the nut on this front right CV axle use?
The supplied hex axle nut has an M24x2.0 thread and takes a 34 mm (1.339 in) socket.
Why is my front right axle clicking when I turn the wheel hard?
Clicking or snapping on hard turns can mean a worn outer CV joint, and grease on the chassis can mean a torn boot. A shop can confirm which one it is.
Which nut and tightening tool go with a CARDONE 66-1445 axle?
Use the new axle nut that comes with it and discard the old locking nut. Tighten it with a torque wrench to the manufacturer's specification, never an impact wrench.
