Front Left CV Axle for 2010-2013 Ford Transit Connect - CARDONE New 66-2252

$203.99

Vehicles this part fits

    Part number: 66-2252
    UPC: 884548138322
    Condition: New
    Weight: 14.40 LBS
    Item Package Quantity: 1
    $203.99
    Adding to cart… The item has been added

    Have questions?

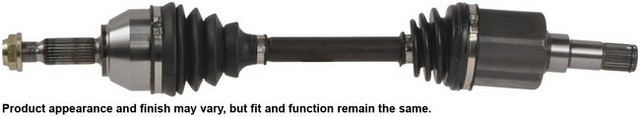

    CARDONE New CV Axle Assembly P/N:66-2252
    CARDONE New CV Axle Assembly P/N:66-2252
    $203.99
    $203.99

    CARDONE New 66-2252 front left CV axle for the 2010-2013 Ford Transit Connect carries drive power from the transaxle to the wheel. This new CV axle assembly has a steel shaft with CV joints at both ends.

    • Neoprene boots with extra bellows where needed, to resist bellow stress and cracking, the leading cause of boot failure
    • Each shaft individually verified for straightness for vibration-free running at all speeds
    • Axle measurements validated after assembly
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads; transmission seal diameter precision-machined after heat treatment for seal surface finish

    Quick facts

    • Part: CARDONE New 66-2252 CV axle
    • Also called: CV axle assembly
    • Fits: 2010-2013 Ford Transit Connect
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking or snapping when you turn hard under power, a thump with vibration on acceleration, or grease on the chassis and suspension from a torn boot can mean this axle is worn, though a broken engine mount or a worn hub bearing can produce similar symptoms.

    Fits

    It is a direct-fit replacement for the 2010-2013 Ford Transit Connect and is built to O.E. form, fit and function.

    Specifications

    Fit and size

    • Position: front left
    • Quantity per vehicle: 1
    • Shaft diameter: 26 mm (1.024 in)
    • Compressed length: 628.65 mm (24.75 in)
    • Axle nut thread: M22x1.5
    • Axle nut socket size: 32 mm (1.26 in)
    • Splines: 26 inboard, 25 outboard

    Build and materials

    • Shaft material: steel
    • Boot material: neoprene
    • ABS tone ring: not included
    • Condition: new
    • Country of origin: China

    In the box

    One front left CV axle with its CV joints, a new hex axle retaining nut and an instruction sheet. This listing holds one axle, and the front left position takes one; the front right side is its own part and is ordered separately.

    Installation notes

    • Tighten the axle retaining nut with a torque wrench to the vehicle maker's specification; never use an impact wrench.
    • Remove and install one axle at a time, and do not let an axle hang unsupported.
    • Install new transaxle seals when replacing the axle.

    Interchange: 9T1Z3B437A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    9T1Z3B437A

    Frequently Asked Questions

    Is the CARDONE New 66-2252 CV axle the right one for the 2010-2013 Ford Transit Connect?

    Yes. CARDONE New 66-2252 is the front left CV axle for the 2010-2013 Ford Transit Connect. The front right side is a separate part.

    Does the 66-2252 CV axle come with a new axle nut?

    Yes. CARDONE New 66-2252 includes a new hex axle retaining nut and an instruction sheet. The ABS tone ring is not included.

    What socket size fits the axle nut on this CV axle?

    The hex axle nut takes a 32 mm (1.26 in) socket and has an M22x1.5 thread.

    What can clicking when I turn hard mean on a CV axle?

    Clicking or snapping when you turn hard under power can mean the outer joint is worn. Grease leaking from a torn boot is another sign, and a shop can confirm which it is.

    Can I use an impact wrench on the nut of this front left CV axle?

    No. Never use an impact wrench on the retaining nut. Use a torque wrench and tighten the nut to the vehicle maker's specification.
